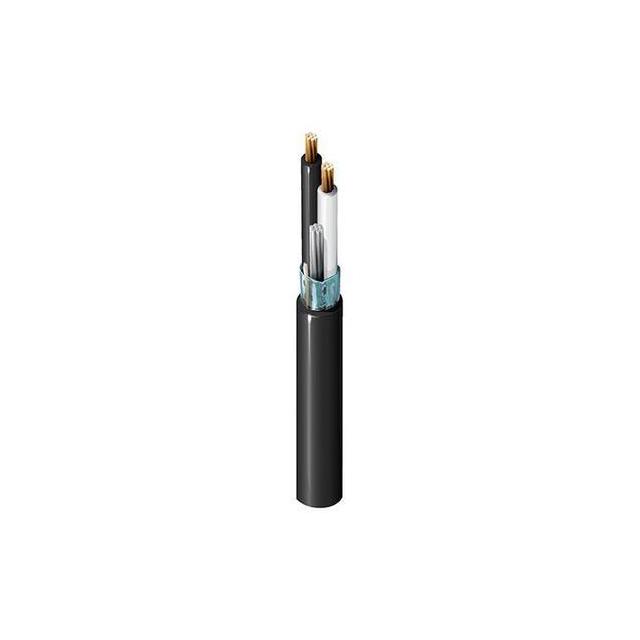

1066A 0105000

Active

Belden Inc.

MULTI-PAIR 24COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1066A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.717 in
Jacket (Insulation) Diameter [diameter]	18.21 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	24
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Shield Coverage	Number of Conductors	Conductor Insulation	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Features	Conductor Material	Jacket Color	Shield Type	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1066A 0105000	100 %	24	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Aluminum	Poly-Vinyl Chloride (PVC)	0.717 in	18.21 mm	18 AWG	Drain Wire Rip Cord	Copper Bare	Black	Foil	Multi-Pair	26 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 7.34

General part information

24 (12 Pair) Conductor Multi-Pair Cable Black 18 AWG Foil 5000' (1524.0m)
