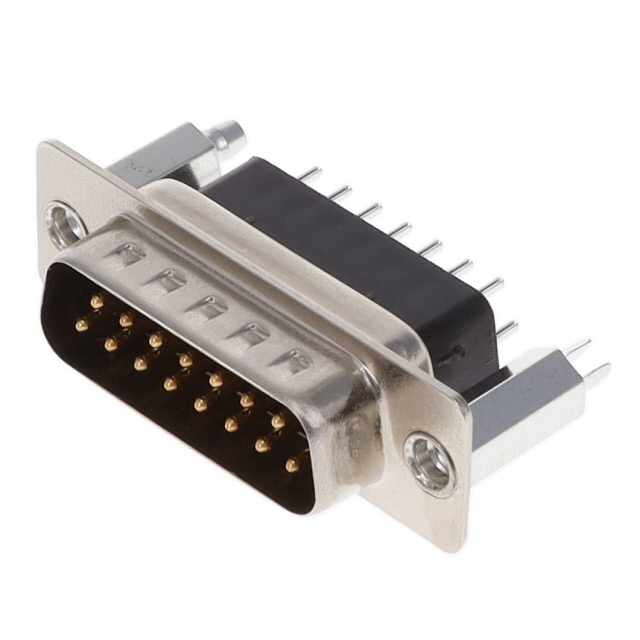

K88X-AD-15P-BR30

Active

Kycon, Inc.

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	K88X-AD-15P-BR30

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	30 VDC

Part	Mounting Type	Dielectric Material	Contact Type	Connector Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Shell Material, Finish	Number of Rows	Termination	Features	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Contact Form	Connector Style	Shell Size, Connector Layout	Color	Contact Material
Kycon, Inc. K88X-AD-15P-BR30	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Male Pins Plug	Gold	105 ░C	-55 °C	2 A	15	UL94 V-0	Nickel Plated Steel	2	Solder	Board Lock Grounding Indents	4-40 Board Side	0.76 Ám	30 Áin	30 VDC	Stamped	D-Sub	2	Black	Brass
