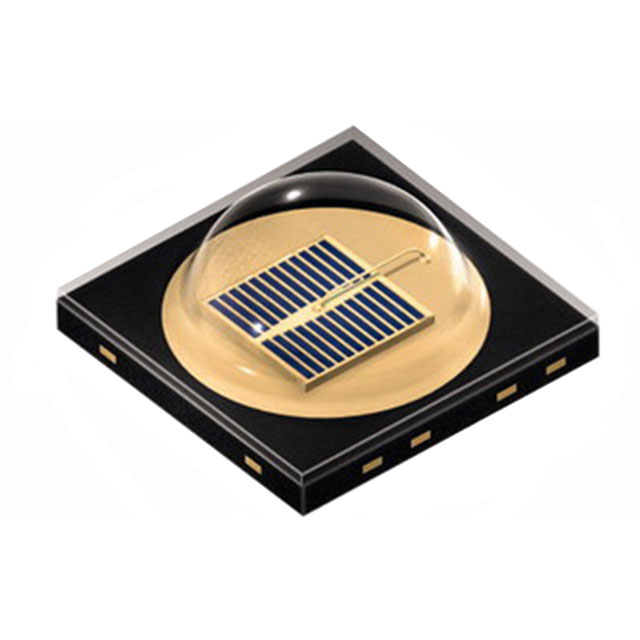

SFH 4726AS A01
Activeams-OSRAM USA INC.
67000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 4726AS A01
Activeams-OSRAM USA INC.
67000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4726AS A01 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 224 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 75 ° |
| Voltage - Forward (Vf) (Typ) | 2.75 V |
| Wavelength | 950 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.76 | |
| 10 | $ 2.76 | |||
| 100 | $ 2.17 | |||
| Digi-Reel® | 1 | $ 3.76 | ||
| 10 | $ 2.76 | |||
| 100 | $ 2.17 | |||
| Tape & Reel (TR) | 600 | $ 1.89 | ||
| 1200 | $ 1.81 | |||
| 1800 | $ 1.77 | |||
| 3000 | $ 1.72 | |||
| 4200 | $ 1.69 | |||
| 6000 | $ 1.67 | |||
Description
General part information
SFH 4726 Series
Infrared (IR) Emitter 950nm 2.75V 1.5A 224mW/sr @ 1.5A 75° 3-SMD, No Lead
