SZL-VL-S-B-N-M

Active

Honeywell Sensing and Productivity Solutions

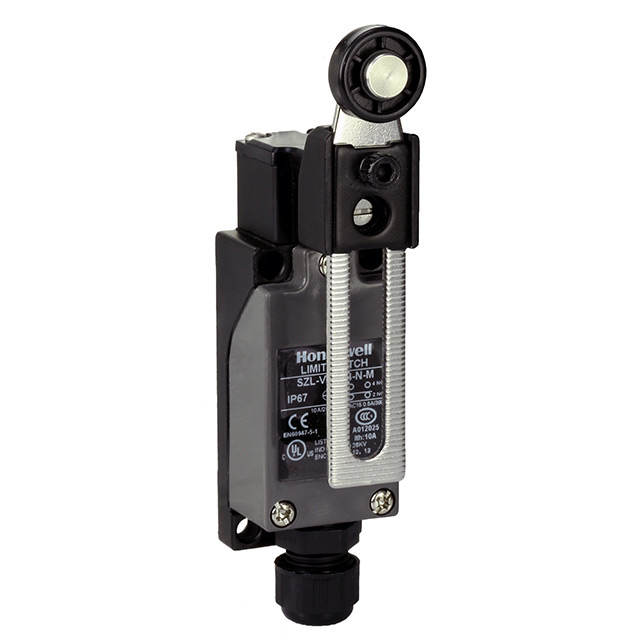

SWITCH SNAP ACT SPDT 0.5A 380V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMachine Safety Range Guide Datasheet

SZL-VL-S-B-N-M

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.5A 380V

Deep-Dive with AI

DocumentsMachine Safety Range Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZL-VL-S-B-N-M

Actuator Type	Side Rotary, Adjustable Roller
Circuit	SPDT (DB/DM)
Current Rating (Amps)	500 mA, 50 mA
Differential Travel	15 °
Electrical Life	500000 Cycles
Features	Nylon Roller
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	18 gfm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Overtravel	70 °
Pretravel	25 °
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	380 V

SZL-VL Series

Part	Operating Force [Max]	Operating Force [Min]	Mechanical Life	Voltage Rating - AC	Differential Travel	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Release Force [Min]	Release Force [Max]	Termination Style	Pretravel	Ingress Protection	Voltage Rating - DC	Switch Function	Electrical Life	Operating Force	Overtravel	Differential Travel	Pretravel	Overtravel	Features
Honeywell Sensing and Productivity Solutions SZL-VL-C	800 gf	204 gf	10000000 Cycles	250 V	10 °	SPDT (DB/DM)	Side Rotary Adjustable Rod	-20 C	60 °C	5 A 400 mA	Chassis Mount	12 gf	50 gf	Screw Terminal	20 °	IP64 - Dust Tight Water Resistant	125 VDC	On-Mom
Honeywell Sensing and Productivity Solutions SZL-VL-S-G-N-M			10000000 Cycles	380 V		SPDT (DB/DM)	Spring Wire	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	30 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	204 gf	20 °
Honeywell Sensing and Productivity Solutions SZL-VL-B	800 gf	342 gf	10000000 Cycles	250 V	10 °	SPDT (DB/DM)	Side Rotary Adjustable Roller	-20 C	60 °C	5 A 400 mA	Chassis Mount	21 gf	50 gf	Screw Terminal	20 °	IP64 - Dust Tight Water Resistant	125 VDC	On-Mom
Honeywell Sensing and Productivity Solutions SZL-VL-S-D-N-M			10000000 Cycles	380 V	0.06 "	SPDT (DB/DM)	Round (Pin Plunger)	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	0.08 in	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	918 gf	0.138 in	1.5 mm	2 mm	3.5 mm
Honeywell Sensing and Productivity Solutions SZL-VL-G			10000000 Cycles	250 V		SPDT (DB/DM)	Spring Wire	-20 C	60 °C	5 A 400 mA	Chassis Mount			Screw Terminal	1.18 in	IP64 - Dust Tight Water Resistant	125 VDC	On-Mom		90 gf	0.788 in		30 mm	20 mm
Honeywell Sensing and Productivity Solutions SZL-VL-S-I-N-M			10000000 Cycles	380 V	15 °	SPDT (DB/DM)	Roller Side Rotary	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	25 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	18 gfm	70 °				Steel Roller
Honeywell Sensing and Productivity Solutions SZL-VL-S-B-N-M			10000000 Cycles	380 V	15 °	SPDT (DB/DM)	Side Rotary Adjustable Roller	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	25 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	18 gfm	70 °				Nylon Roller
Honeywell Sensing and Productivity Solutions SZL-VL-S-K-N-M			10000000 Cycles	380 V		SPDT (DB/DM)	Coil Spring	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	30 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	204 gf	20 °
Honeywell Sensing and Productivity Solutions SZL-VL-S-A-N-M			10000000 Cycles	380 V	15 °	SPDT (DB/DM)	Roller Side Rotary	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	25 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	18 gfm	70 °				Nylon Roller
Honeywell Sensing and Productivity Solutions SZL-VL-S-C-N-M			10000000 Cycles	380 V	15 °	SPDT (DB/DM)	Side Rotary Adjustable Rod	-20 C	70 °C	50 mA 500 mA	Chassis Mount			Screw Terminal	25 °	IP67 - Dust Tight Waterproof		On-Mom	500000 Cycles	18 gfm	70 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.30
		10	$ 38.37
		25	$ 35.61
		50	$ 33.65
		100	$ 31.79
		250	$ 30.17

Description

General part information

SZL-VL Series

Switch SPDT (DB/DM) Chassis Mount

Documents

Technical documentation and resources

Machine Safety Range Guide

Datasheet
