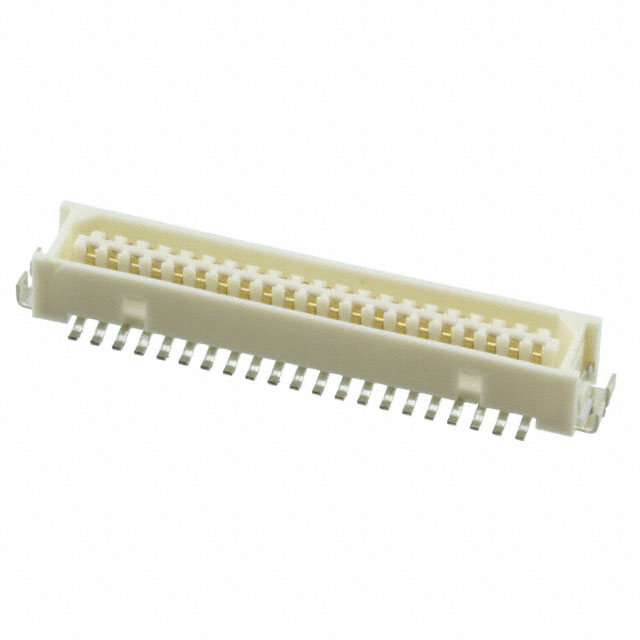

DF9BA-41P-1V(69)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 41POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 41POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF9BA-41P-1V(69)

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mounting Type	Surface Mount
Number of Positions	41
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Mounting Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Connector Type
Hirose Electric USA, Inc. DF9BA-41P-1V(69)	Surface Mount	0.13 in	3.3 mm	Solder Retention	8 çin	0.203 çm	41	0.039 in	1 mm	2	Gold	Header Center Strip Contacts
Hirose Electric USA, Inc. DF9BA-31P-1V(32)	Surface Mount	0.13 in	3.3 mm	Solder Retention	39.4 Áin	1 Ám	31	0.039 in	1 mm	2	Tin	Header Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

41 Position Connector Header, Center Strip Contacts Surface Mount Gold
