UB25KKG016B-JB

Active

NKK Switches

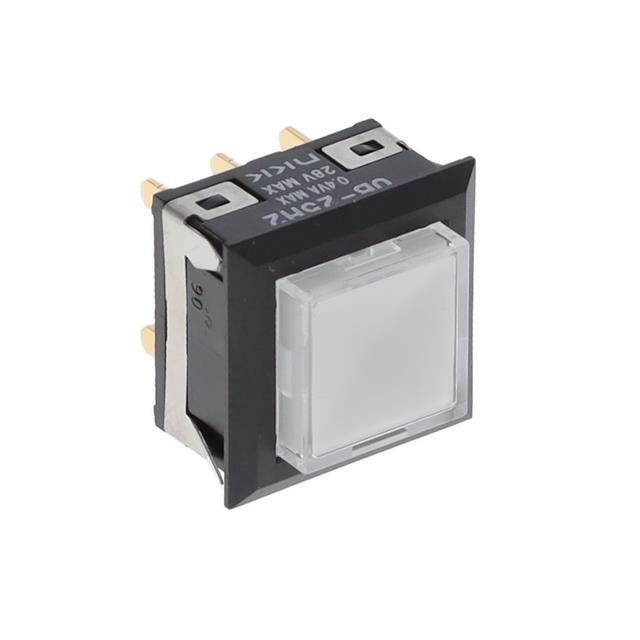

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB25KKG016B-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB25KKG016B-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Stackable, Sealed - Fully
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	2.9 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB25KKG Series

Part	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Illumination Type, Color	Current Rating (Amps)	Actuator Marking	Mounting Type	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Illumination Voltage (Nominal)	Mechanical Life	Features	Termination Style	Actuator Type	Color - Actuator/Cap
NKK Switches UB25KKG015F	28 V	16.2 mm	16.2 mm	200000 Cycles	Green LED	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	2.1 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Plunger for Cap
NKK Switches UB25KKG016F	28 V	16.2 mm	16.2 mm	200000 Cycles	Green LED	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	3.2 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Plunger for Cap
NKK Switches UB25KKG016B-JB	28 V	16.2 mm	16.2 mm	200000 Cycles	LED White	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	2.9 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Button Square	Clear
NKK Switches UB25KKG015C	28 V	16.2 mm	16.2 mm	200000 Cycles	LED Red	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	1.85 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Plunger for Cap
NKK Switches UB25KKG016G	28 V	16.2 mm	16.2 mm	200000 Cycles	Blue LED	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	2.9 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Plunger for Cap
NKK Switches UB25KKG01N-A	28 V	16.2 mm	16.2 mm	200000 Cycles		0.4 VA	No Marking	Panel Mount Snap-In	Standard	DPDT	70 °C	-20 C	28 V	On-Mom		1000000 Cycles	Sealed - Hermetically	Solder Lug	Button Square	Black
NKK Switches UB25KKG015D-DD	28 V	16.2 mm	16.2 mm	200000 Cycles	Amber LED	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	2 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Button Square	Amber
NKK Switches UB25KKG01N-C	28 V	16.2 mm	16.2 mm	200000 Cycles		0.4 VA	No Marking	Panel Mount Snap-In	Standard	DPDT	70 °C	-20 C	28 V	On-Mom		1000000 Cycles	Sealed - Hermetically	Solder Lug	Button Square	Red
NKK Switches UB25KKG015F-JB	28 V	16.2 mm	16.2 mm	200000 Cycles	Green LED	0.4 VA	No Marking	Panel Mount Snap-In	Illuminated Standard	DPDT	50 °C	-25 °C	28 V	On-Mom	2.1 VDC	1000000 Cycles	Sealed - Fully Stackable	Solder Lug	Button Square	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.38
		10	$ 24.86
Newark	Each	1	$ 48.03
		5	$ 42.83
		10	$ 41.38
		25	$ 39.09
		50	$ 36.39
		100	$ 32.23
		250	$ 28.90

Description

General part information

UB25KKG Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
