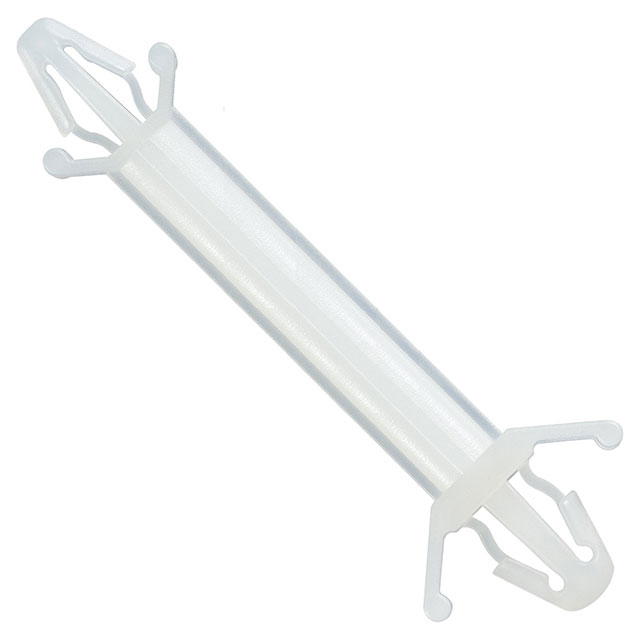

R6422-00

Active

Harwin Inc.

22.20MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

22.20MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6422-00

Between Board Height	0.874 in
Between Board Height	22.2 mm
Holding Type	Snap Lock
Length - Overall [x]	1.528 in
Length - Overall [x]	38.8 mm
Material	Nylon
Mounting Hole Diameter	4.8 mm
Mounting Hole Diameter	0.189 in
Mounting Panel Thickness	2.7 mm
Mounting Panel Thickness	0.106 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Support Panel Thickness	Support Panel Thickness	Mounting Type	Between Board Height	Between Board Height	Material	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Length - Overall [x]
Harwin Inc. R6422-00	0.157 "	3.99 mm	Snap Lock	1.6 mm	0.063 in	Snap Lock	0.874 in	22.2 mm	Nylon	4.8 mm	0.189 in	2.7 mm	0.106 in	1.528 in	38.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.09
Newark	Each	1000	$ 0.13

General part information

Board Support Snap Lock / Snap Lock Nylon 0.874" (22.20mm)
