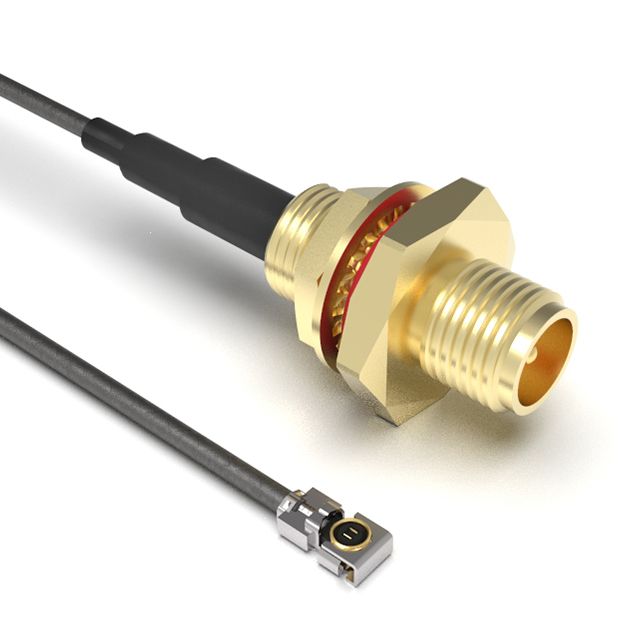

CAB421RF-0200-A-1

Active

GCT

CBL ASSY SMA-MHF4L LK P-P 7.874"

Search across all available documentation for this part.

Active

GCT

CBL ASSY SMA-MHF4L LK P-P 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CAB421RF-0200-A-1

1st Connector	SMA Plug
1st Connector Mounting Feature	Bulkhead - Rear Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	IPEX MHF4L LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type [diameter]	1.37 mm
Color	Black
Features	IP Rated Unmated
Frequency - Max [Max]	3 GHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to IPEX MHF4L LK

Part	Ingress Protection	Style	Cable Impedance	2nd Contact Gender	1st Connector	Color	Cable Type [diameter]	Length	Length	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Features	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type
GCT CAB421RF-0200-A-1	IP67/IP68 - Dust Tight Waterproof	SMA to IPEX MHF4L LK	50 Ohms	Female	SMA Plug	Black	1.37 mm	7.874 in	200 mm	50 Ohms	85 °C	-40 °C	IP Rated Unmated	Male	Free Hanging (In-Line)	Bulkhead - Rear Side Nut	3 GHz	IPEX MHF4L LK (Locking) Plug Right Angle	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 8.59

General part information

Cable Assembly Coaxial SMA to IPEX MHF4L LK 1.37mm OD Coaxial Cable 7.874" (200.00mm)
