7016-0056

Active

Amphenol SV Microwave

RF / COAXIAL CABLE ASSEMBLY, 2.4MM STRAIGHT PLUG, 2.4MM STRAIGHT PLUG, 0.047" SEMI RIGID, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

7016-0056

Active

Amphenol SV Microwave

RF / COAXIAL CABLE ASSEMBLY, 2.4MM STRAIGHT PLUG, 2.4MM STRAIGHT PLUG, 0.047" SEMI RIGID, 50 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7016-0056

1st Connector	2.4mm Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	2.4mm Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	0.047" Flexible Cable
Color	Blue
Features	Shielded
Frequency - Max [Max]	50 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style [Max]	2.4 mm
Style [Min]	2.4 mm

7016 Series

Part	2nd Connector	Features	1st Contact Gender	1st Connector Mounting Type	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Length	Length	Style	Overall Impedance	1st Connector	Color	Cable Type	2nd Connector Mounting Type	2nd Connector	Style [Max]	Style [Min]
Amphenol SV Microwave 7016-0065	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	12 "	304.8 mm	SMPM to 2.4mm	50 Ohms	Right Angle SMPM Jack	Blue	0.047" Flexible Cable	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0062		Shielded	Male	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	6 in	152.4 mm		50 Ohms	2.4mm Plug	Blue	TFlex-405	Free Hanging (In-Line)	2.92 mm	2.92 mm	2.4 mm
Amphenol SV Microwave 7016-0074	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	50 GHz	6 in	152.4 mm	SMPS to 2.4mm	50 Ohms	SMPS Jack	Blue	0.047" Flexible Cable	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0068	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	6 in	152.4 mm	SMPM to 2.4mm	50 Ohms	SMPM Jack	Blue	0.047" Flexible Cable	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0073	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	12 "	304.8 mm	SMPS to 2.4mm	50 Ohms	Right Angle SMPS Jack	Blue	0.047" Flexible Cable	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0061		Shielded	Male	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	12 "	304.8 mm		50 Ohms	2.4mm Plug	Blue	0.047" Flexible Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	2.4 mm
Amphenol SV Microwave 7016-0064	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	6 in	152.4 mm	SMPM to 2.4mm	50 Ohms	Right Angle SMPM Jack	Blue	0.047" Flexible Cable	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0070	2.4mm Plug	Shielded	Female	Free Hanging (In-Line)	Male	-65 ░C	165 °C	40 GHz	6 in	152.4 mm	SMPM to 2.4mm	50 Ohms	SMPM Jack	Blue	TFlex-405	Free Hanging (In-Line)
Amphenol SV Microwave 7016-0057	2.4mm Plug	Shielded	Male	Free Hanging (In-Line)	Male	-65 ░C	165 °C	50 GHz	12 "	304.8 mm		50 Ohms	2.4mm Plug	Blue	0.047" Flexible Cable	Free Hanging (In-Line)		2.4 mm	2.4 mm
Amphenol SV Microwave 7016-0056	2.4mm Plug	Shielded	Male	Free Hanging (In-Line)	Male	-65 ░C	165 °C	50 GHz	6 in	152.4 mm		50 Ohms	2.4mm Plug	Blue	0.047" Flexible Cable	Free Hanging (In-Line)		2.4 mm	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 329.12
Newark	Each	10	$ 394.42
		25	$ 383.16
		50	$ 360.62

Description

General part information

7016 Series

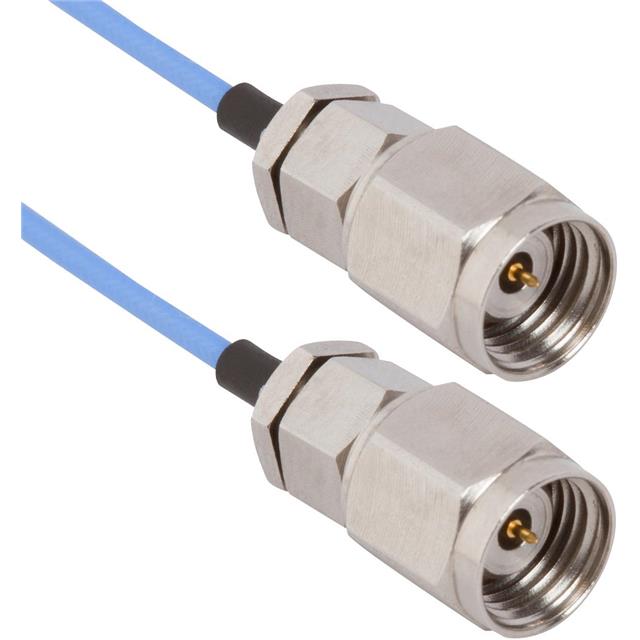

Cable Assembly Coaxial 2.4mm to 2.4mm 0.047" Flexible Cable 6.000" (152.40mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
