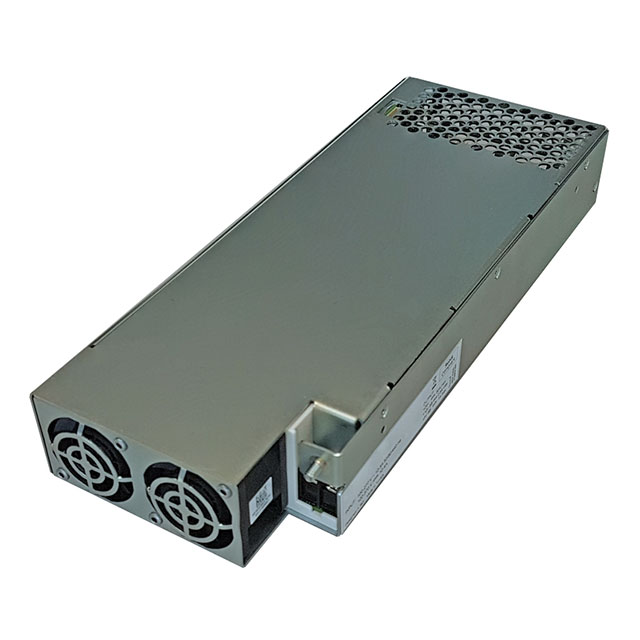

ABE1200-1T24

Active

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 24V, 50A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 24V, 50A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ABE1200-1T24

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	50 A
Efficiency	94 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1200 W
Size / Dimension [x]	10.3 "
Size / Dimension [x]	261.6 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	305 VAC, 300 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Approval Agency	Applications	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Power (Watts)	Voltage - Output 1	Standard Number	Type	Efficiency	Minimum Load Required	Features
EOS Power India Private Ltd ABE1200-1T24	4 "	10.3 "	261.6 mm	1.61 "	101.6 mm	41 mm	Chassis Mount	CE cURus DEMKO	ITE (Commercial)	1	60 °C	-20 °C	4000 V	300 VDC 305 VAC	85 VAC 120 VDC	50 A	1200 W	24 V	60950-1	Enclosed	94 %		Adjustable Output PFC Remote On/Off Remote Sense Universal Input
EOS Power India Private Ltd ABE1200-1T48	4 "	10.3 "	261.6 mm	1.61 "	101.6 mm	41 mm	Chassis Mount	CE cURus DEMKO	ITE (Commercial)	1	60 °C	-20 °C	4000 V	300 VDC 305 VAC	85 VAC 120 VDC	25 A	1200 W	48 V	60950-1	Enclosed	94 %		Adjustable Output PFC Remote On/Off Remote Sense Universal Input
