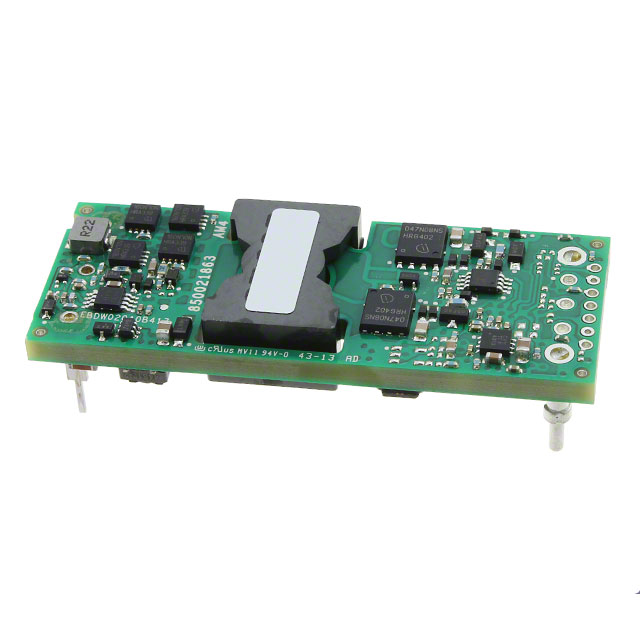

EBVW020A0B41Z

Active

OmniOn Power™

DC DC CONVERTER 12V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EBVW020A0B41Z

Active

OmniOn Power™

DC DC CONVERTER 12V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBVW020A0B41Z

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	95.2 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	240 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.1 mm
Type	Intermediate Bus Converter
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

EBVW020 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case	Control Features	Applications	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Mounting Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Type
OmniOn Power™ EBVW020A0B1Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B64Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B984Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B41Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active Low Enable	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B841Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B941Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B641Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B841Z	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active High Enable	ITE (Commercial)	Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter
OmniOn Power™ EBVW020A0B41-PHZ	85 °C	-40 °C	12 V	1/8 Brick 8-DIP Module	Active Low Enable	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	20 A	75 V	36 V	240 W	1	Through Hole	2250 VDC	0.44 "	58.4 mm	22.9 mm	0.9 "	11.1 mm	2.3 in	95.2 %	Intermediate Bus Converter

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 65.48
		5	$ 64.97
		10	$ 64.46
		36	$ 62.41
		72	$ 59.34
		108	$ 55.25

Description

General part information

EBVW020 Series

Intermediate Bus Converter DC DC Converter 1 Output 12V 20A 36V - 75V Input
