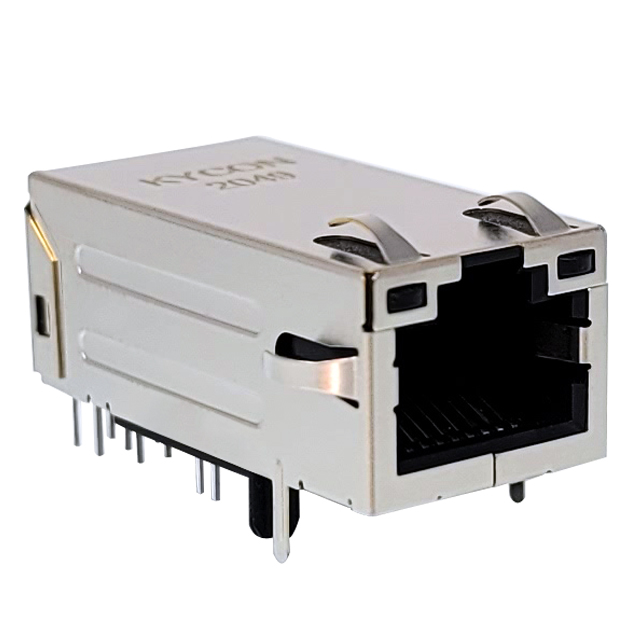

G16LX-112S7-5G-G/Y-50
ActiveKycon, Inc.
CONN JACK 1PORT 5G BASE-T T/H
Deep-Dive with AI
Search across all available documentation for this part.
G16LX-112S7-5G-G/Y-50
ActiveKycon, Inc.
CONN JACK 1PORT 5G BASE-T T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G16LX-112S7-5G-G/Y-50 |
|---|---|
| Applications | 5G Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board [z] | 13.61 mm |
| Height Above Board [z] | 0.536 " |
| Housing Material | Polybutylene Terephthalate (PBT) |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 13.86 | |
Description
General part information
G16LX Series
1 Port RJ45Through Hole 5G Base-T, AutoMDIX, Power over Ethernet (PoE)
