090832100T
ActiveEssentra Access Solutions

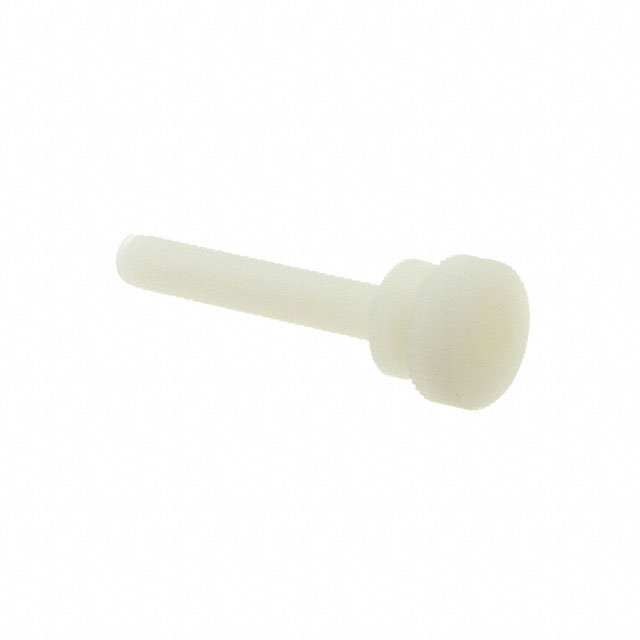

KNURLED THUMB SCREW 8-32 THREAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
090832100T
ActiveEssentra Access Solutions
KNURLED THUMB SCREW 8-32 THREAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 090832100T |
|---|---|
| Head Diameter [diameter] | 0.425 " |
| Head Diameter [diameter] | 10.8 mm |
| Head Height | 7.75 mm |
| Head Height | 0.305 in |
| Length - Below Head | 25.4 mm |
| Length - Below Head | 1 in |
| Length - Overall [x] | 1.305 in |
| Length - Overall [x] | 33.15 mm |
| Material | Nylon |
| Screw Head Type | Knob |
| Thread Size | #8-32 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 5 | $ 0.23 | |||
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
Description
General part information
090832100 Series
#8-32 Knob Thumb Screw Drive Nylon
Documents
Technical documentation and resources
