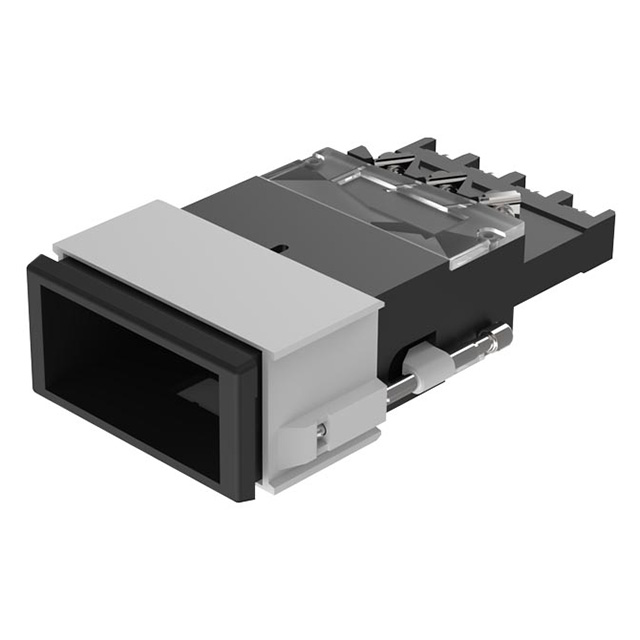

03-617.011

Active

EAO

PUSH BUTTON SWITCH ROHS

Search across all available documentation for this part.

Active

EAO

PUSH BUTTON SWITCH ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	03-617.011

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPDT
Current Rating (Amps)	10 A
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	41.2 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	400 V

Part	Ingress Protection	Current Rating (Amps)	Switch Function	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mechanical Life	Type	Circuit
EAO 03-617.011	IP40	10 A	On-Mom	Panel Mount Front	400 V	Rectangular Button (Not Included)	55 °C	-25 °C	Screw Terminal	No Marking	41.2 mm	21.2 mm	2000000 Cycles	Standard	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
