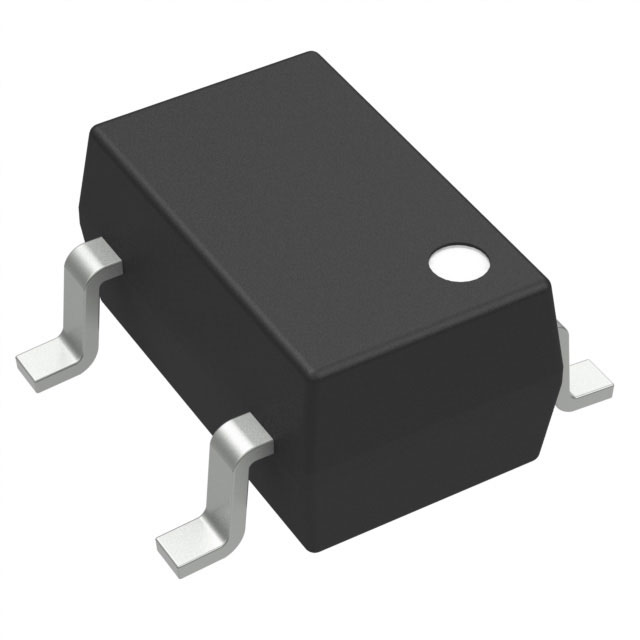

TLV271SN1T1G
ActiveOPERATIONAL AMPLIFIER, SINGLE, 1 CHANNELS, 3 MHZ, 2.4 V/ΜS, 2.7V TO 16V, SOT-23, 5 PINS
Deep-Dive with AI
Search across all available documentation for this part.
TLV271SN1T1G
ActiveOPERATIONAL AMPLIFIER, SINGLE, 1 CHANNELS, 3 MHZ, 2.4 V/ΜS, 2.7V TO 16V, SOT-23, 5 PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLV271SN1T1G |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 8 mA |
| Current - Supply | 490 µA |
| Gain Bandwidth Product | 3 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Slew Rate | 2.6 V/µs |
| Supplier Device Package | 5-TSOP |
| Voltage - Input Offset | 500 çV |
| Voltage - Supply Span (Max) [Max] | 16 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.96 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 3000 | $ 0.43 | ||
| 6000 | $ 0.42 | |||
| 15000 | $ 0.41 | |||
| Newark | Each (Supplied on Full Reel) | 3000 | $ 0.54 | |
| 6000 | $ 0.49 | |||
| 12000 | $ 0.44 | |||
| 18000 | $ 0.42 | |||
| 30000 | $ 0.41 | |||
| ON Semiconductor | N/A | 1 | $ 0.37 | |
Description
General part information
TLV271 Series
The TLV271 operational amplifier provides rail to rail output operation. The output can swing within 320 mV to the positive rail and 50 mV to the negative rail. This rail to rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth. The TLV271 can operate on supply voltage as low as 2.7 V over the temperature range of minus 40 to plus 105 degrees C. The high bandwidth provides a slew rate of 2.4 V per us while only consuming 550uA of quiescent current. Likewise the TLV271 can run on a supply voltage as high as 16 V making it ideal for a broad range of battery operated applications. Since this is a CMOS device it has high input impedance and low bias currents making it ideal for interfacing to a wide variety of signal sensors. In addition it comes in a small TSOP5 package with two pinout styles allowing for use in high density PCBs.Product Family:
