WP914CK/4GDT

Active

Kingbright

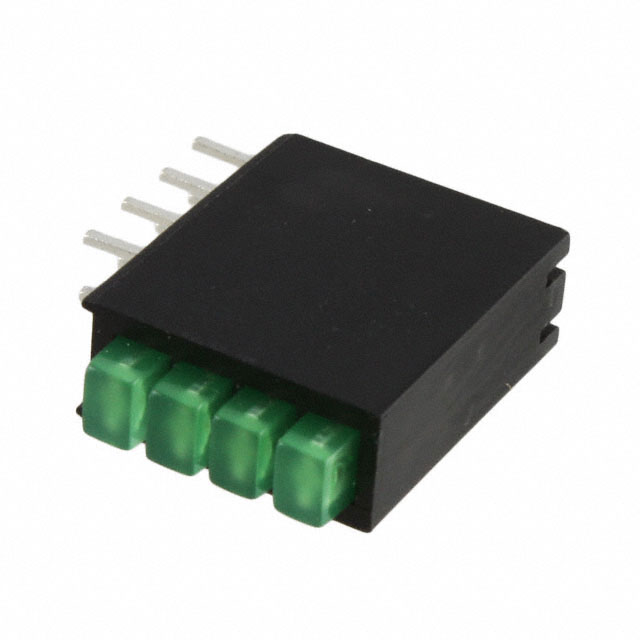

SINGLE COLOR LED ARRAY, GREEN, DIFFUSED, 3MM, 2 X 3 MM, ROHS COMPLIANT PACKAGE-8

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP914CK/4GDT

Active

Kingbright

SINGLE COLOR LED ARRAY, GREEN, DIFFUSED, 3MM, 2 X 3 MM, ROHS COMPLIANT PACKAGE-8

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP914CK/4GDT

Color	Green (x 4)
Configuration	Bar - 4 High, DIP
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	4.5 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	100 °
Wavelength - Peak	568 nm

WP914 Series

Part	Wavelength - Dominant	Color	Supplier Device Package	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Mounting Type	Lens Transparency	Configuration	Voltage - Forward (Vf) (Typ)	Lens Color	Viewing Angle [custom]	Millicandela Rating	Wavelength - Peak	Current - Test	Lens Size [y]	Lens Size [x]	Package / Case	Viewing Angle	Height (Max) [Max] [z]	Voltage Rating	Lens Type	Lens Size	Lens Size
Kingbright WP914IT	617 nm	Red	Rectangular	5 mm	2 mm	3 mm	Rectangle with Flat Top	Through Hole	Clear	Standard	2 V	Red	90 °	5 mcd	627 nm	20 mA	2 mm	3 mm	Radial
Kingbright WP914EDT	617 nm		Rectangular		2 mm	3 mm	Rectangle with Flat Top	Through Hole	Diffused	Standard	2 V	Orange		4 mcd	627 nm	20 mA	2 mm	3 mm	Radial	100 °	4 mm
Kingbright WP914HT	635 nm	Red	Rectangular	5 mm	2 mm	3 mm	Rectangle with Flat Top	Through Hole	Clear	Standard	2.25 V	Red	90 °	0.5 mcd	700 nm	20 mA	2 mm	3 mm	Radial
Kingbright WP914CK/4IDT		Red (x 4)						Through Hole Right Angle		Bar - 4 High DIP				5.5 mcd						100 °		2 V	Diffused Tinted
Kingbright WP914CK/4GDT		Green (x 4)					Round with Domed Top	Through Hole Right Angle		Bar - 4 High DIP				4.5 mcd	568 nm					100 °			Diffused Tinted	3 mm	T-1
Kingbright WP914ET	617 nm		Rectangular	5 mm	2 mm	3 mm	Rectangle with Flat Top	Through Hole	Clear	Standard	2 V	Orange	90 °	5 mcd	627 nm	20 mA	2 mm	3 mm	Radial
Kingbright WP914GDT	568 nm	Green	Rectangular		2 mm	3 mm	Rectangle with Flat Top	Through Hole	Diffused	Standard	2.2 V	Green		6 mcd	565 nm	20 mA	2 mm	3 mm	Radial	100 °	4 mm
Kingbright WP914HDT	635 nm	Red	Rectangular		2 mm	3 mm	Rectangle with Flat Top	Through Hole	Diffused	Standard	2.25 V	Red		0.4 mcd	700 nm	20 mA	2 mm	3 mm	Radial	100 °	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.38
		66	$ 1.59
		132	$ 1.22
		528	$ 1.10
		1056	$ 0.95
		2046	$ 0.90
		5016	$ 0.88
		10032	$ 0.86

Description

General part information

WP914 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 High, DIP Green (x 4) Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
