12214-5150-00FR

Active

3M (TC)

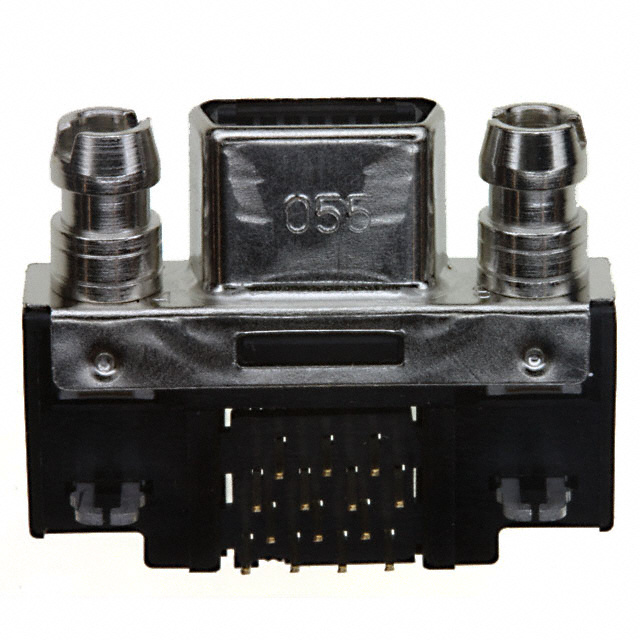

I/O CONNECTOR, 14 CONTACTS, RECEPTACLE, SDR, THROUGH HOLE, 122 SERIES, PCB MOUNT

Search across all available documentation for this part.

Active

3M (TC)

I/O CONNECTOR, 14 CONTACTS, RECEPTACLE, SDR, THROUGH HOLE, 122 SERIES, PCB MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	12214-5150-00FR

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Lock
Flange Feature	M2
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	14
Number of Rows	2
Termination	Solder

Part	Features	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Connector Style	Number of Rows	Mounting Type	Contact Finish	Flange Feature
3M (TC) 12214-1110-00FR	Shielded	14	Solder	0.76 Ám	30 Áin	Receptacle	Outer Shroud Contacts	2	Through Hole	Gold
3M (TC) 12214-5150-00PL	Board Lock Shielded	14	Solder	0.203 çm	8 çin	Receptacle	Outer Shroud Contacts	2	Panel Mount Right Angle Through Hole	Gold	M2
3M (TC) 12214-5150-00FR	Board Lock Shielded	14	Solder	0.76 Ám	30 Áin	Receptacle	Outer Shroud Contacts	2	Panel Mount Right Angle Through Hole	Gold	M2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
