Technical Specifications
Parameters and characteristics for this part
| Specification | 538702106018096 |
|---|---|
| Board-Side Pitch | 4.5 mm |
| Board-Side Pitch | 0.177 " |
| Cable Pitch [x] | 0.177 in |
| Cable Pitch [x] | 4.5 mm |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.97 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.60 | |||
| 2000 | $ 0.59 | |||
Description
General part information
538702 Series

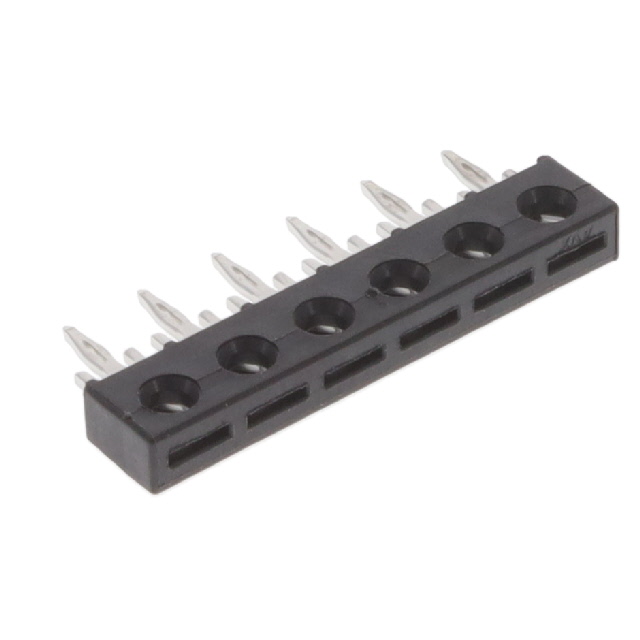

6 Position Header Connector Black IDC 18 AWG Through Hole, Right Angle
