E2052S.30.10

Active

Prysmian Group

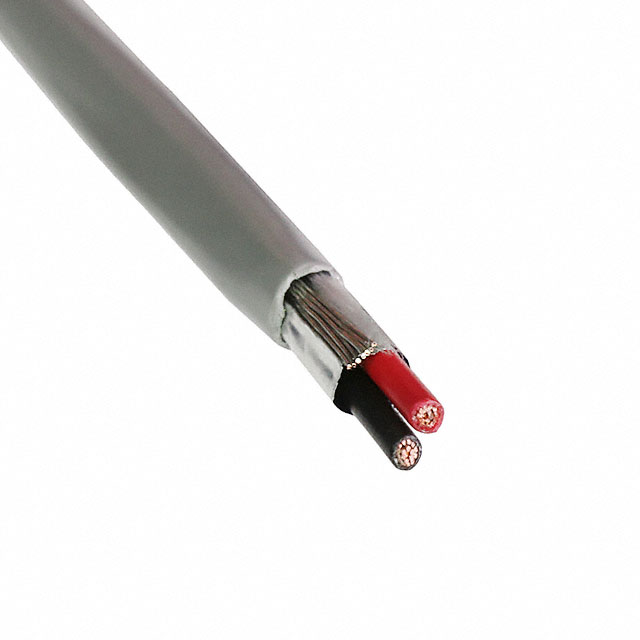

CABLE 2COND 14AWG GRAY SHLD 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 14AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	E2052S.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0147 in
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Conductor Insulation	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Number of Conductors	Length [x]	Shield Material	Jacket Color	Features	Shield Type	Cable Type	Voltage	Length	Conductor Material	Conductor Strand [diameter]	Conductor Strand [custom]	Jacket (Insulation) Material
Prysmian Group E2052S.41.10	Poly-Vinyl Chloride (PVC)	13.5 AWG	100 %	6.22 mm	0.245 in	15.24 m 304.8 m	50 ft 100 ft 500 '	0.015 in	0.381 mm	Alarm Security Sound	2	30.5 m 152.4 m	Flexfoil®	Gray	Drain Wire	Foil	Multi-Conductor	300 V	1000 ft	Copper Bare	0.0147 in	19 Strands	Poly-Vinyl Chloride (PVC)
Prysmian Group E2052S.30.10	Poly-Vinyl Chloride (PVC)	13.5 AWG	100 %	6.22 mm	0.245 in	304.8 m	100 ft	0.015 in	0.381 mm	Alarm Security Sound	2	30.5 m	Flexfoil®	Gray	Drain Wire	Foil	Multi-Conductor	300 V	1000 ft	Copper Bare	0.0147 in	19 Strands	Poly-Vinyl Chloride (PVC)
Prysmian Group E2052S.41.03	Poly-Vinyl Chloride (PVC)	13.5 AWG	100 %	6.22 mm	0.245 in	304.8 m		0.015 in	0.381 mm		2		Flexfoil®	Red	Drain Wire	Foil	Multi-Conductor	300 V	1000 ft	Copper Bare	0.0147 in	19 Strands	Poly-Vinyl Chloride (PVC) Riser

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 14 AWG Foil 1000.0' (304.8m)
