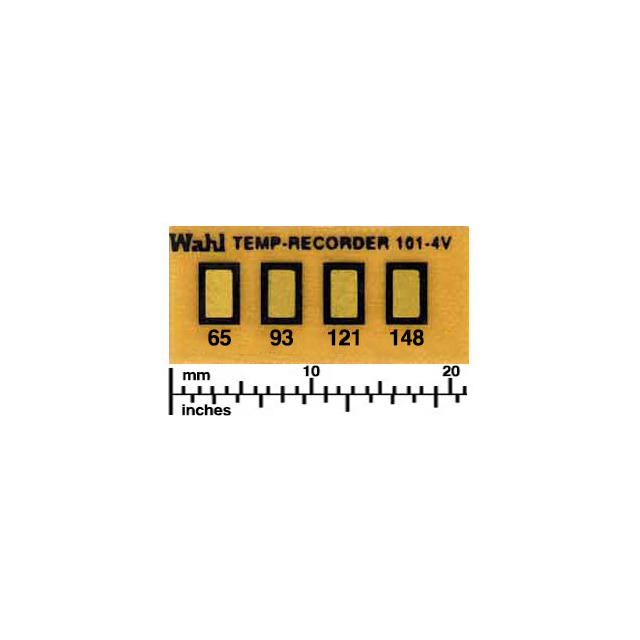

101-4-066VC

Active

Wahl Temp-Plate®

MINI FOUR-POSITION IC BATCH

Search across all available documentation for this part.

Active

Wahl Temp-Plate®

MINI FOUR-POSITION IC BATCH

Technical Specifications

Parameters and characteristics for this part

Specification	101-4-066VC

Application Specifics	Assorted
Applications	General
Arrangement	Symbol and Text
Color - Background	Red
Color - Legend	White
Features	Grease Resistant, Water Resistant, Self-Adhesive Edge, Oil Resistant, Fuel Resistant
Language	English
Legend (Text)	65 °C, 93 °C, 148 °C, 121 °C
Length [x]	20.83 mm
Length [x]	0.82 "
Mounting Type	Adhesive, Permanent
Print Type	Pre-Printed
Shape	Rectangle
Width [y]	0.38 in
Width [y]	9.65 mm

Part	Width [y]	Width [y]	Features	Legend (Text)	Print Type	Mounting Type	Length [x]	Length [x]	Shape	Arrangement	Application Specifics	Language	Color - Background	Color - Legend	Applications
Wahl Temp-Plate® 101-4-170F	0.38 in	9.65 mm	Fuel Resistant Grease Resistant Oil Resistant Self-Adhesive Edge Water Resistant	170 °F 180 °F 190 °F 200 °F	Pre-Printed	Adhesive Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-390F	0.38 in	9.65 mm	Fuel Resistant Grease Resistant Oil Resistant Self-Adhesive Edge Water Resistant	390 °F 400 °F 410 °F 420 °F	Pre-Printed	Adhesive Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-151F	0.38 in	9.65 mm	Fuel Resistant Grease Resistant Oil Resistant Self-Adhesive Edge Water Resistant	150 °F 200 °F 250 °F 300 °F	Pre-Printed	Adhesive Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-094VC	0.38 in	9.65 mm	Fuel Resistant Grease Resistant Oil Resistant Self-Adhesive Edge Water Resistant	93 °C 104 °C 115 °C 126 °C	Pre-Printed	Adhesive Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-066VC	0.38 in	9.65 mm	Fuel Resistant Grease Resistant Oil Resistant Self-Adhesive Edge Water Resistant	65 °C 93 °C 121 °C 148 °C	Pre-Printed	Adhesive Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MINI FOUR-POSITION IC BATCH

Technical documentation and resources

No documents available
