Q-3C03Z000R018I

Active

Amphenol Custom Cable

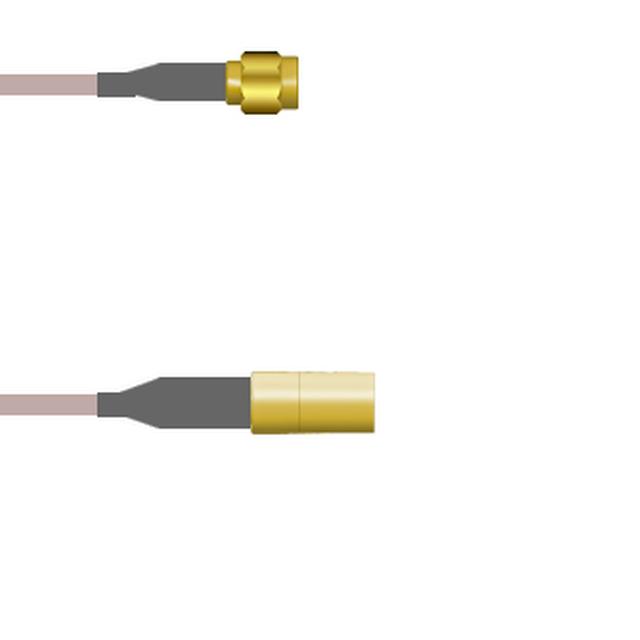

CBL ASSY SMA-SMB PLUG-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3C03Z000R018I

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB PLUG-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3C03Z000R018I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-3C03Z0 Series

Part	2nd Contact Gender	Overall Impedance	Style	1st Contact Gender	Cable Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	Features	Length	Length	Length	2nd Connector	Connector Impedance	1st Connector	Color	Cable Type	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-3C03Z000R072I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded	6 ft	72 in	1.8 m	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)
Amphenol Custom Cable Q-3C03Z000R048I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded	4 ft	48 in	1200 mm	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)
Amphenol Custom Cable Q-3C03Z000R012I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded		12 "	304.8 mm	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)
Amphenol Custom Cable Q-3C03Z000R018I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded				SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3C03Z000R036I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded		36 in	91.44 cm	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)
Amphenol Custom Cable Q-3C03Z000R2.5M	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded	8.2 '	98.4 in	2.5 m	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)
Amphenol Custom Cable Q-3C03Z000R060I	Female	50 Ohms	SMA to SMB	Male	50 Ohms	Free Hanging (In-Line)	3 GHz	Shielded	5 ft	5 '	1.5 m	SMB Plug	50 Ohms	SMA Plug	Copper	RG-316 DS	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 181.72
		25	$ 178.17
		50	$ 174.63
		100	$ 171.08
		250	$ 167.53

Description

General part information

Q-3C03Z0 Series

Cable Assembly Coaxial SMA to SMB RG-316 DS 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
