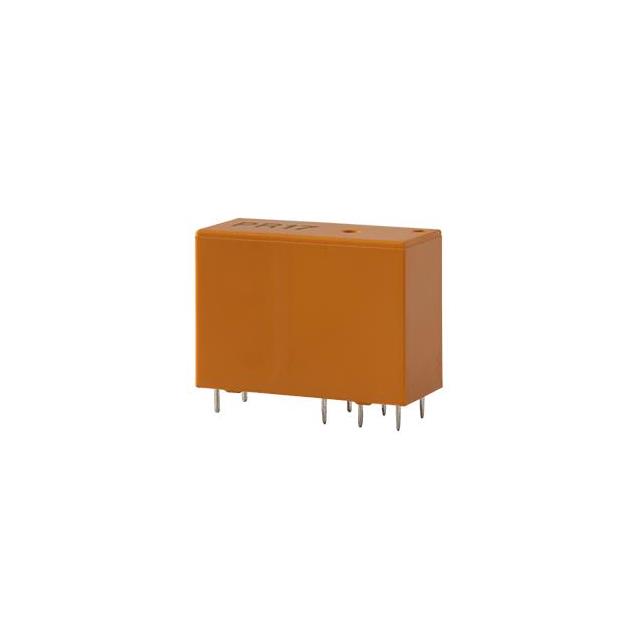

PR17-5V-540-1A
ActiveCUI Devices
POWER RELAY 5VDC 16A SPST-NO(29MM 12.6MM 20.8MM) THT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR17-5V-540-1A
ActiveCUI Devices
POWER RELAY 5VDC 16A SPST-NO(29MM 12.6MM 20.8MM) THT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR17-5V-540-1A |
|---|---|
| Coil Current | 108.7 mA |
| Coil Resistance | 46 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 4000 VA, 480 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.65 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.38 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.21 | |||
Description
General part information
PR17-5V Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
