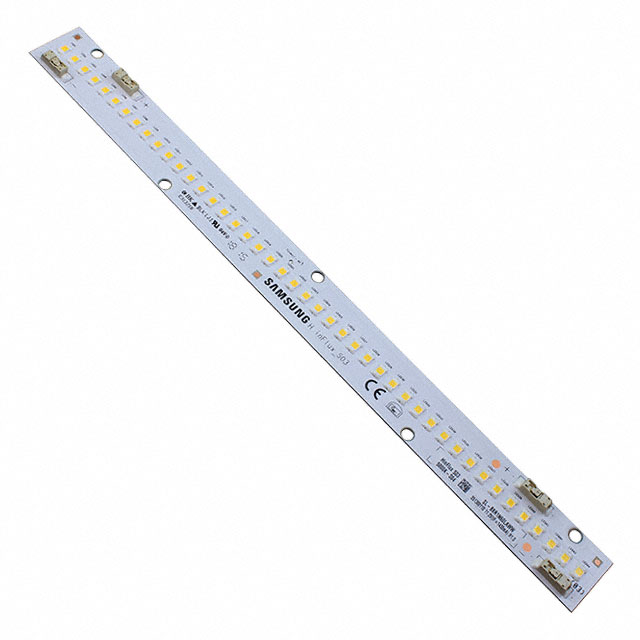

SL-B8R1N60LAWW

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 5000K

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-B8R1N60LAWW

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	2.2 A
Height [z]	5.2 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	191 lm/W
Luminous Flux @ Current/Temperature	3060 lm
Size / Dimension [x]	280 mm
Size / Dimension [y]	24 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	118 °
Voltage - Forward (Vf) (Typ)	11.2 V

Part	Temperature - Test	Lens Type	Features	Type	Lumens/Watt @ Current - Test	Color	Configuration	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Luminous Flux @ Current/Temperature	Current - Test	CRI (Color Rendering Index)	Height [z]	Current - Max [Max]
Samsung Semiconductor, Inc. SL-B8R1N00L1WW	65 °C	Flat	With Connector	LED Module	140 lm/W	Cool White	Linear Light Strip	5000 K	279.6 mm	23.7 mm	9.1 V	115 °	1465 lm	1.15 A	80	5.9 mm	1.15 A
Samsung Semiconductor, Inc. SL-B8R1N30LALA
Samsung Semiconductor, Inc. SL-B8R1N60LAWW	55 °C	Flat		LED Module	191 lm/W	Cool White	Linear Light Strip	5000 K	280 mm	24 mm	11.2 V	118 °	3060 lm		80	5.2 mm	2.2 A
Samsung Semiconductor, Inc. SL-B8R1N60LALA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	6144	$ 7.56

General part information

LED Lighting COBs Engines Modules LED Module H inFlux White, Cool Linear Light Strip
