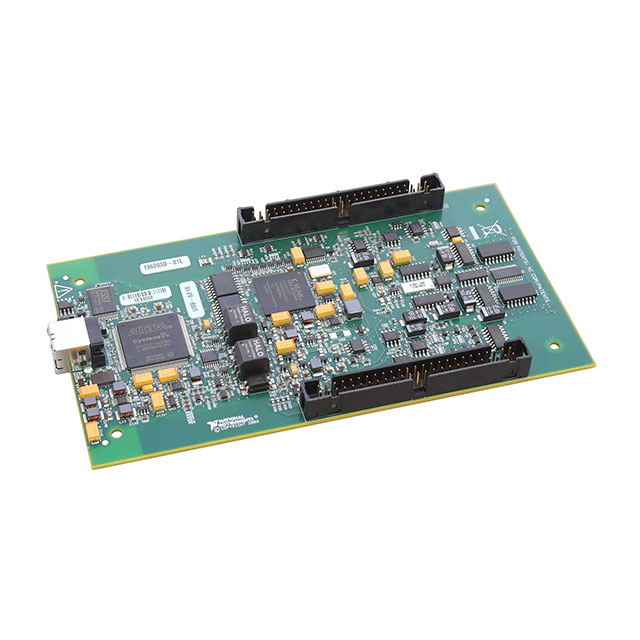

196203-01

Obsolete

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Obsolete

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	196203-01

Bidirectional Channels	8
Bus Connection	USB 2.0
Counter/Timers	2
Front Connection	Generic (OEM)
Function	Multifunction I/O
Input Range [Max]	10.4 V
Input Range [Min]	-10.4 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	32
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	8
Number of Outputs and Type [custom]	2
Number of Outputs and Type [custom]	8
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	250 k per second
Type	DAQ Device

Part	Output Range [Min]	Output Range [Max]	Input Range [Min]	Input Range [Max]	Counter/Timers	Sampling Rate (Per Second)	Function	Front Connection	Bus Connection	Input Resolution	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Type	Bidirectional Channels
NI 196203-01	-10 V	10 V	-10.4 V	10.4 V	2	250 k per second	Multifunction I/O	Generic (OEM)	USB 2.0	16 Bits	2	8	32	16	8	DAQ Device	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Multifunction I/O DAQ Device USB 2.0 Generic (OEM)
