9TJ48P0H01
ActiveSanyo Denki America Inc.

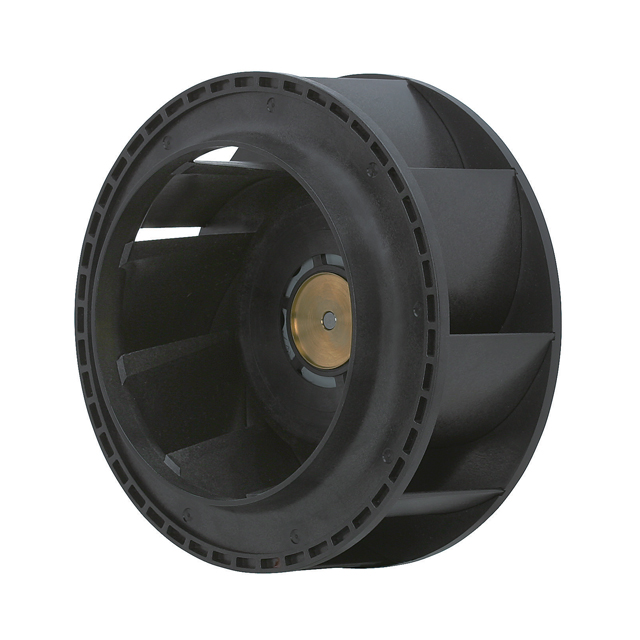

FAN IMP MTRZD 133X91MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
9TJ48P0H01
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 133X91MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9TJ48P0H01 |
|---|---|
| Air Flow | 6.33 m³/min |
| Air Flow | 226 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.55 A |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 61 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 26.4 W |
| RPM | 4150 RPM |
| Size / Dimension [diameter] | 133 mm |
| Static Pressure | 396.1 Pa |
| Static Pressure | 1.59 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 72 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 1.5 lb |
| Weight | 680.4 g |
| Width [y] | 91 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 12 | $ 103.93 | |
Description
General part information
9TJ48 Series
Fan Motorized Impellers 48VDC Round - 133mm Dia Ball 226.0 CFM (6.33mł/min) 4 Wire Leads
