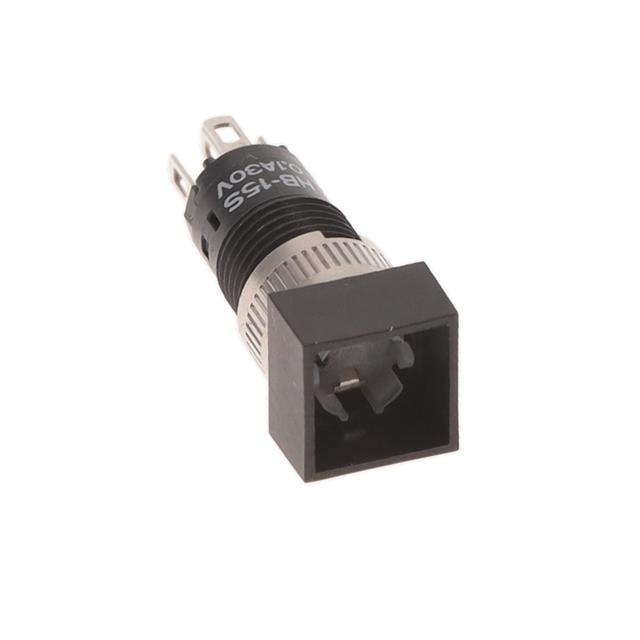

HB15SKW01/U

Active

NKK Switches

MINIATURE PUSHBUTTON/ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HB15SKW01/U

Active

NKK Switches

MINIATURE PUSHBUTTON/ILLUMINATED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB15SKW01/U

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB15SKW Series

Part	Actuator Type	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Illumination Type, Color	Mechanical Life	Mounting Type	Color - Actuator/Cap	Circuit	Switch Function	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Electrical Life
NKK Switches HB15SKW01-6B-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED White	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	3.3 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5C-CB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED Red	100000 Cycles	Panel Mount Front	Red	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01/U	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front		SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles
NKK Switches HB15SKW01-5D-DB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Amber LED	100000 Cycles	Panel Mount Front	Amber	SPDT	On-Mom	No Marking	30 V	100 mA	2.05 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5C-CB/U	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED Red	100000 Cycles	Panel Mount Front		SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-6F-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	3.5 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-E	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front	Yellow	SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles
NKK Switches HB15SKW01-5F-AB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Black	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5F-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-G	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front	Blue	SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.49
		10	$ 8.55
		100	$ 7.47
		1000	$ 6.26
Newark	Each	1	$ 18.83
		5	$ 17.56
		10	$ 16.15
		25	$ 14.74
		50	$ 13.33
		100	$ 11.78
		250	$ 10.58

Description

General part information

HB15SKW Series

Pushbutton Switch SPDT Standard Panel Mount, Front
