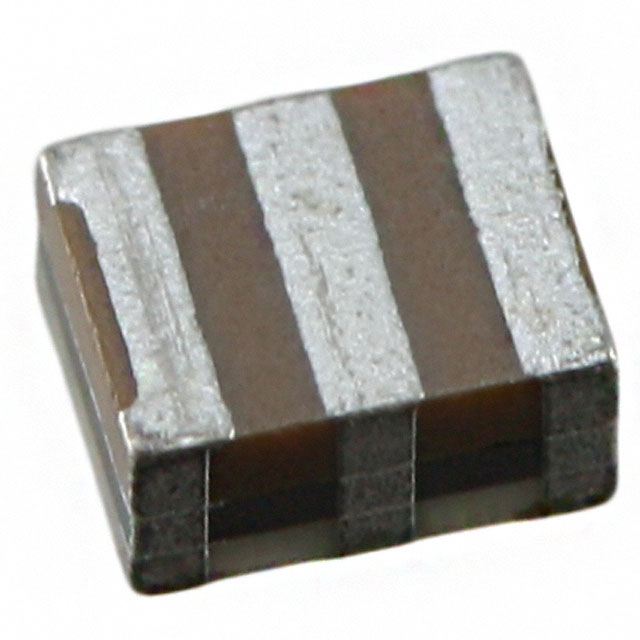

CSTCW40M0X51-R0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 40.0000MHZ 6PF SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 40.0000MHZ 6PF SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height [z]	Height [z]	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Mounting Type	Frequency	Features
Murata Power Solutions Inc. CSTCW30M0X53-R0	0.098 "	2 mm	2.5 mm	0.079 in	3-SMD Non-Standard	0.053 in	1.34 mm
Murata Power Solutions Inc. CSTCW55M0X51-R0	0.098 "	2 mm	2.5 mm	0.079 in	3-SMD Non-Standard	0.053 in	1.34 mm
Murata Power Solutions Inc. CSTCW40M0X51-R0	0.098 "	2 mm	2.5 mm	0.079 in	3-SMD Non-Standard			0.5 %	-20 C	80 C	6 pF	Ceramic	Surface Mount	40 MHz	Built in Capacitor
Murata Power Solutions Inc. CSTCW25M0X53-R0	0.098 "	2 mm	2.5 mm	0.079 in	3-SMD Non-Standard	0.053 in	1.34 mm	0.5 %	-20 C	80 C	15 pF	Ceramic	Surface Mount	25 MHz	Built in Capacitor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 MHz Ceramic Resonator Built in Capacitor 6 pF ±0.2% -20°C ~ 80°C Surface Mount

Technical documentation and resources

No documents available
