US1DFA
NRNDON Semiconductor

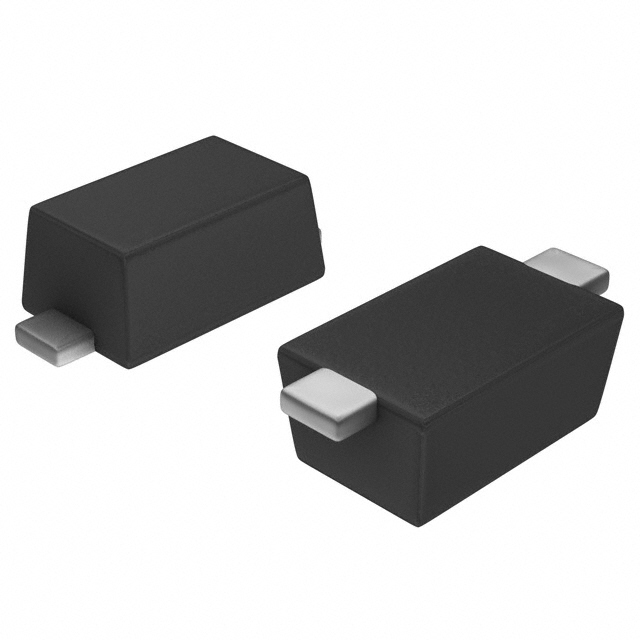

200V 1A HIGH EFFIECIENCY RECTIFIER TRR=50NS IN SOD-123FA
Deep-Dive with AI
Search across all available documentation for this part.
US1DFA
NRNDON Semiconductor
200V 1A HIGH EFFIECIENCY RECTIFIER TRR=50NS IN SOD-123FA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US1DFA |
|---|---|
| Capacitance @ Vr, F | 20 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-123W |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123FA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.38 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.30 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.23 | |||
| ON Semiconductor | N/A | 1 | $ 0.13 | |
Description
General part information
US1DFA Series
Super Fast Surface Mount Rectifiers
