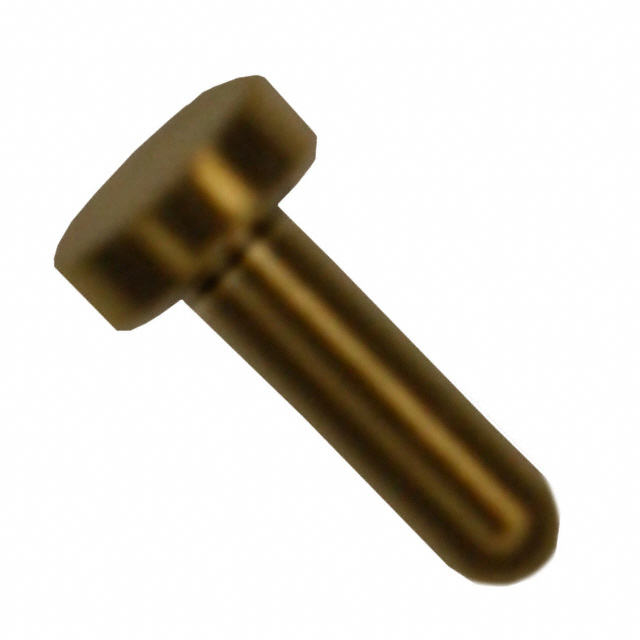

9050-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.012DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
9050-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.012DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9050-0-00-15-00-00-33-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.64 mm |
| Flange Diameter [diameter] | 0.025 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 1.07 mm |
| Length - Above Flange [x] | 0.042 in |
| Length - Overall [x] | 1.27 mm |
| Length - Overall [x] | 0.05 in |
| Mounting Hole Diameter [diameter] | 0.016 in |
| Mounting Hole Diameter [diameter] | 0.41 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange | 0.012 in |
| Pin Size - Above Flange | 0.3 mm |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.51 | |||
Description
General part information
9050-0 Series
PC Pin Terminal Connector Through Hole Gold 0.012" (0.30mm) Dia
