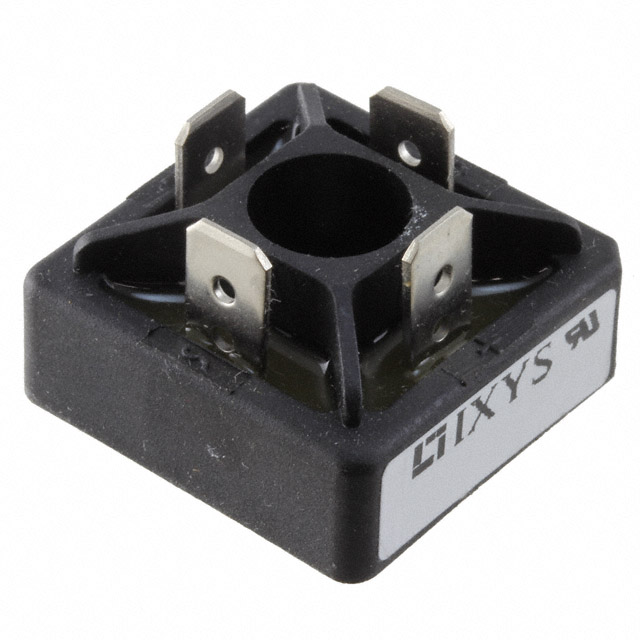

VBO20-16AO2

Obsolete

IXYS

BRIDGE RECT 1P 1.6KV 31A FO-A

Search across all available documentation for this part.

Obsolete

IXYS

BRIDGE RECT 1P 1.6KV 31A FO-A

Technical Specifications

Parameters and characteristics for this part

Specification	VBO20-16AO2

Current - Average Rectified (Io)	31 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-Square, FO-A
Supplier Device Package	FO-A
Technology	Avalanche
Voltage - Forward (Vf) (Max) @ If	1.8 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Supplier Device Package	Current - Average Rectified (Io)	Mounting Type	Voltage - Peak Reverse (Max) [Max]
IXYS VBO20-16NO2	Single Phase	150 °C	-40 °C	300 µA	1.6 kV	1.8 V	Standard	4-Square FO-A	FO-A	31 A	QC Terminal
IXYS VBO20-12NO2	Single Phase	150 °C	-40 °C	300 µA		1.8 V	Standard	4-Square FO-A	FO-A	31 A	QC Terminal	1.2 kV
IXYS VBO20-16AO2	Single Phase	150 °C	-40 °C	300 µA	1.6 kV	1.8 V	Avalanche	4-Square FO-A	FO-A	31 A	QC Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Avalanche 1.6 kV QC Terminal FO-A
