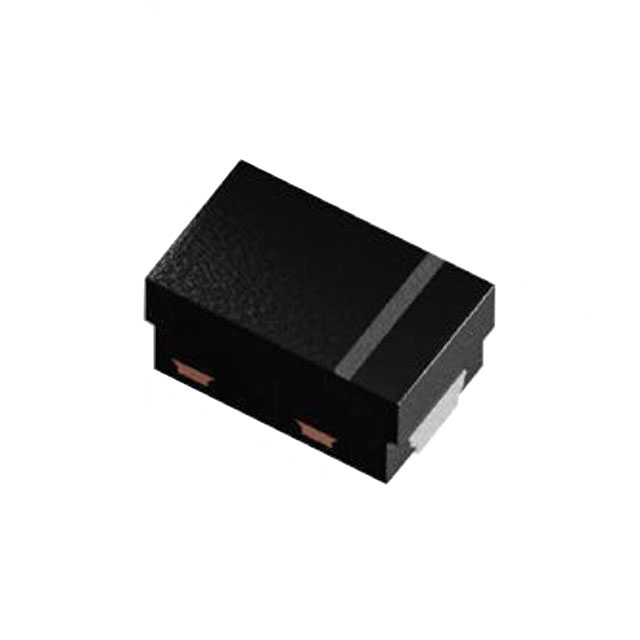

VMMBZ33C1HD1HG3-08
ActiveVishay General Semiconductor - Diodes Division
28V;IR=0.1UA;IP=1.7A;P=100W;CD=1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VMMBZ33C1HD1HG3-08
ActiveVishay General Semiconductor - Diodes Division
28V;IR=0.1UA;IP=1.7A;P=100W;CD=1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VMMBZ33C1HD1HG3-08 |
|---|---|
| Capacitance @ Frequency | 16.1 pF |
| Current - Peak Pulse (10/1000µs) | 300 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | 15 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DFN1006-2A |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 31.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 85 V |
| Voltage - Reverse Standoff (Typ) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 30000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
Description
General part information
VMMBZ33C Series
85V Clamp 300mA Ipp Tvs Diode Surface Mount DFN1006-2A
