Q-2W05A0003009I

Active

Amphenol Custom Cable

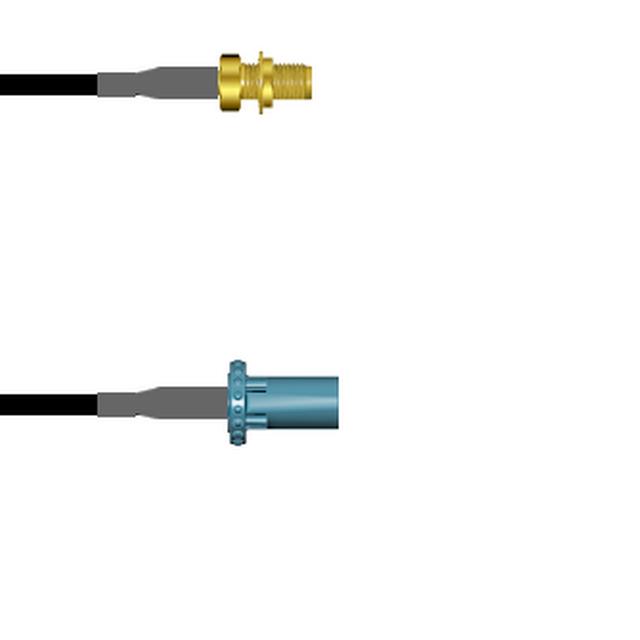

COAX CBL SMA TO FAKRA II 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO FAKRA II 9"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2W05A0003009I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra II (Gen 2.0) Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to Fakra II

Part	Cable Type	2nd Connector Mounting Type	Features	Color	Frequency - Max [Max]	Cable Impedance	1st Contact Gender	Length	Length	2nd Contact Gender	2nd Connector	Overall Impedance	Connector Impedance	1st Connector	Style	1st Connector Mounting Feature	1st Connector Mounting Type
Amphenol Custom Cable Q-2W05A0003009I	RG-174	Free Hanging (In-Line)	Shielded	Black	1 GHz	50 Ohms	Female	9 "	228.6 mm	Male	Fakra II (Gen 2.0) Plug	50 Ohms	50 Ohms	SMA Jack	SMA to Fakra II	Bulkhead - Front Side Nut	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to Fakra II RG-174 9.000" (228.60mm)

Technical documentation and resources

No documents available
