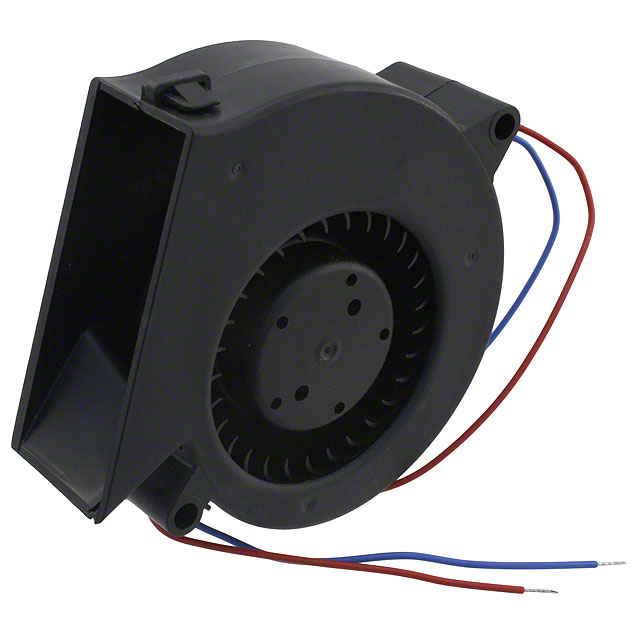

RL48-19/14
Activeebm-papst Inc.
FAN BLOWER 75.2X27MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
RL48-19/14
Activeebm-papst Inc.
FAN BLOWER 75.2X27MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RL48-19/14 |
|---|---|
| Bearing Type | Ball |
| Fan Type | Blower |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Glass Filled, Plastic |
| Noise | 51 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 5 W |
| RPM | 4400 RPM |
| Size / Dimension [x] | 75.2 mm |
| Size / Dimension [z] | 75.5 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 18 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.51 | |
| 10 | $ 39.73 | |||
| 25 | $ 38.23 | |||
| 50 | $ 35.71 | |||
| 100 | $ 32.95 | |||
| 250 | $ 32.44 | |||
Description
General part information
RL48 Series
Fan Blower 24VDC Rectangular/Rounded - 75.2mm L x 75.5mm H Ball 16.5 CFM (0.462m³/min) 2 Wire Leads
