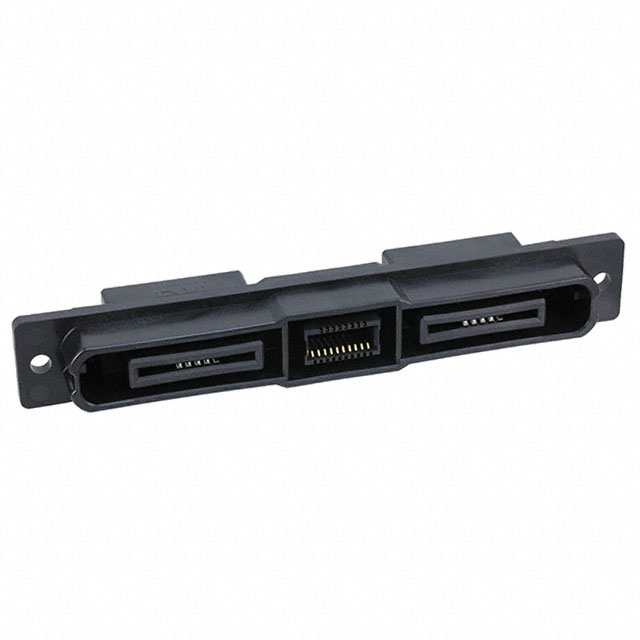

PS3F-2RS/8S/10S(01)

Obsolete

Hirose Electric USA, Inc.

HYBRID/SIGNAL 125A POWER SUPPLY, FRONT ACCESS PLUG-IN CONNECTORS

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

HYBRID/SIGNAL 125A POWER SUPPLY, FRONT ACCESS PLUG-IN CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	PS3F-2RS/8S/10S(01)

Contact Finish	Gold
Current Rating (Amps)	150 A
Material Flammability Rating	UL94 V-0
Number of Positions	2
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Screw

Part	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish	Termination	Current Rating (Amps)
Hirose Electric USA, Inc. PS3F-2RS/8S/10S(01)	2	UL94 V-0	-40 °C	105 ░C	All	Gold	Screw	150 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.41
Newark	Each	1	$ 35.20
		50	$ 31.20

General part information

2 Connector Panel Mount
