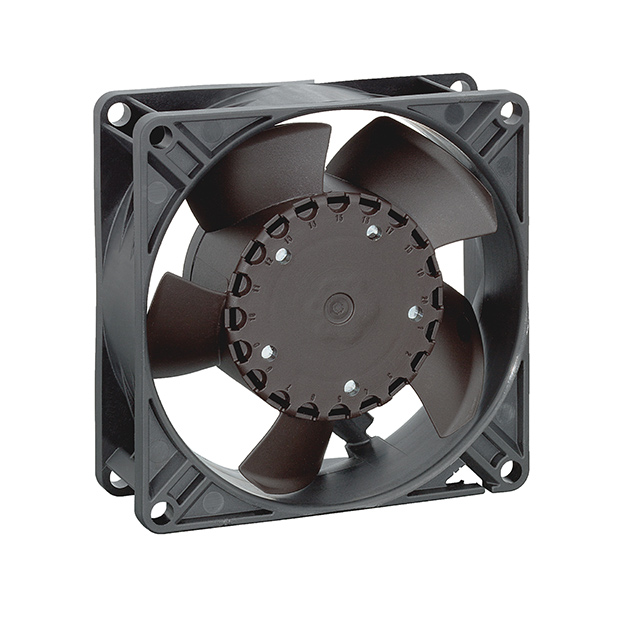

3312NN

Active

ebm-papst Inc.

FAN AXIAL 92X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 92X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	3312NN

Air Flow	47 CFM
Air Flow	1.32 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	35 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	1.8 W
RPM	2650 RPM
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	6 VDC
Weight	0.419 lb
Weight	190.06 g
Width [y]	32 mm

Part	RPM	Bearing Type	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Noise	Power (Watts)	Fan Type	Material - Frame	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Termination	Voltage - Rated	Material - Blade	Air Flow	Air Flow
ebm-papst Inc. 3312NH3	4350 RPM	Ball	50000 Hrs	14 V	6 VDC	32 mm	50 dB(A)	6.7 W	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.419 lb	190.06 g	-20 C	-20 °C	75 ░C	75 °C	UL	2 Wire Leads	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2.18 m³/min	78 CFM
ebm-papst Inc. 3312NL	1850 RPM	Ball	80000 Hrs	15 V	6 VDC	32 mm	24 dB	0.8 W	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.419 lb	190.06 g	-20 C	-20 °C	75 ░C	75 °C	CE CSA UL VDE	2 Wire Leads	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	0.924 mł/min	33 CFM
ebm-papst Inc. 3312NN	2650 RPM	Ball	70000 Hrs	15 V	6 VDC	32 mm	35 dB	1.8 W	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.419 lb	190.06 g	-20 C	-20 °C	75 ░C	75 °C	CE CSA UL VDE	2 Wire Leads	12 VDC	Nylon Polyamide (PA)	1.32 m³/min	47 CFM
ebm-papst Inc. 3312NM	2250 RPM	Ball	70000 Hrs	15 V	6 VDC	32 mm	29 dB(A)	1.3 W	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.419 lb	190.06 g	-20 C	-20 °C	75 ░C	75 °C	UL	2 Wire Leads	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	1.12 mł/min	40 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 47.0 CFM (1.32mł/min) 2 Wire Leads
