ASD2511-R-N

Active

TinyCircuits

9-AXISTINYSHIELD

Search across all available documentation for this part.

Active

TinyCircuits

9-AXISTINYSHIELD

Technical Specifications

Parameters and characteristics for this part

Specification	ASD2511-R-N

Contents	Board(s)
Function	Magnetometer, Gyroscope, Accelerometer
Platform	TinyDuino
Type	Sensor
Utilized IC / Part	LSM9DS1

Part	Type	Contents	Function	Platform	Utilized IC / Part
TinyCircuits ASD2511-R-L	Sensor	Board(s)	Light	TinyDuino
TinyCircuits ASD2511-R-N-T-P-L	Sensor	Board(s)	Accelerometer Gyroscope Humidity Light Pressure Temperature	TinyDuino	BMP280 LSM9DS1 Si7020-A10 TSL2572
TinyCircuits ASD2511-R-P	Sensor	Board(s)	Pressure	TinyDuino	BMP280
TinyCircuits ASD2511-R-N	Sensor	Board(s)	Accelerometer Gyroscope Magnetometer	TinyDuino	LSM9DS1
TinyCircuits ASD2511-R-T	Sensor	Board(s)	Humidity Temperature	TinyDuino	Si7020
TinyCircuits ASD2511-R-A	Sensor	Board(s)	Accelerometer	TinyDuino	BMA250

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.95

General part information

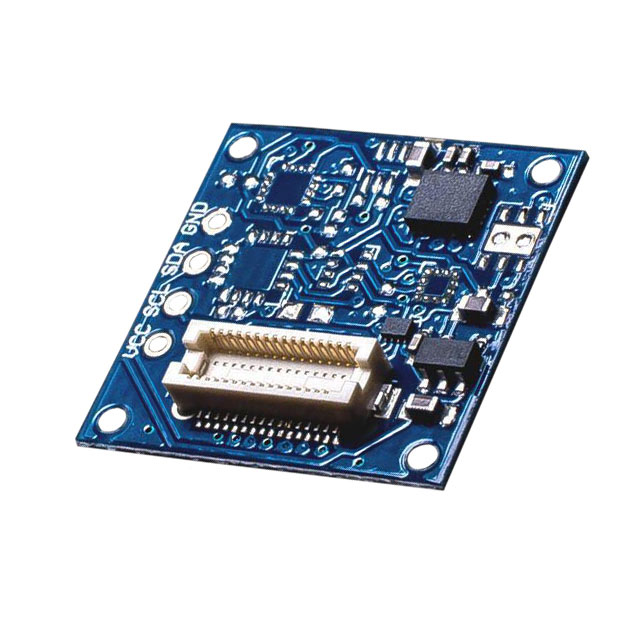

LSM9DS1 Accelerometer, Gyroscope, Magnetometer Sensor TinyDuino Platform Evaluation Expansion Board
