2954895

Active

Phoenix Contact

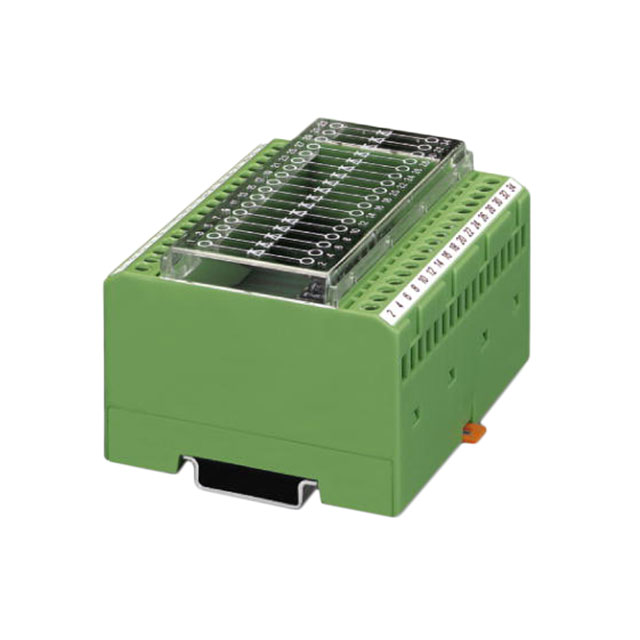

DIODE MODULE GP 1300V 500MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V 500MA

Technical Specifications

Parameters and characteristics for this part

Specification	2954895

Current - Average Rectified (Io) (per Diode)	500 mA
Diode Configuration	17 Independent
Mounting Type	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V

Part	Supplier Device Package	Technology	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Package / Case	Mounting Type
Phoenix Contact 2954882	Module	Standard	300 mA	8 Common Anode	1000 V	50 °C	-20 °C	Standard Recovery >500ns	200 mA	Module	DIN Rail/Channel
Phoenix Contact 2954879	Module	Standard	300 mA	8 Common Cathode	1000 V	50 °C	-20 °C	Standard Recovery >500ns	200 mA	Module	DIN Rail/Channel
Phoenix Contact 2954808	Module	Standard	400 mA	8 Pair Common Cathode	1300 V	50 °C	-20 °C	Standard Recovery >500ns	200 mA	Module	DIN Rail/Channel
Phoenix Contact 2954895	Module	Standard	500 mA	17 Independent	1300 V	50 °C	-20 °C	Standard Recovery >500ns	200 mA	Module	DIN Rail/Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 212.73

General part information

Diode Array 17 Independent 1300 V 500mA DIN Rail/Channel Module
