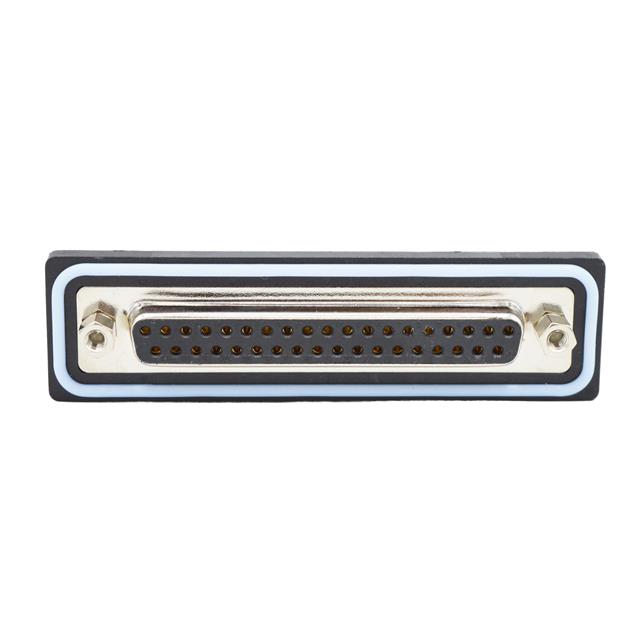

SDF-R37-213L462
ActiveMH Connectors
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 37 CONTACTS, DC, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
SDF-R37-213L462
ActiveMH Connectors
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 37 CONTACTS, DC, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDF-R37-213L462 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SDF-R37 Series
37 Position D-Sub Receptacle, Female Sockets Connector
