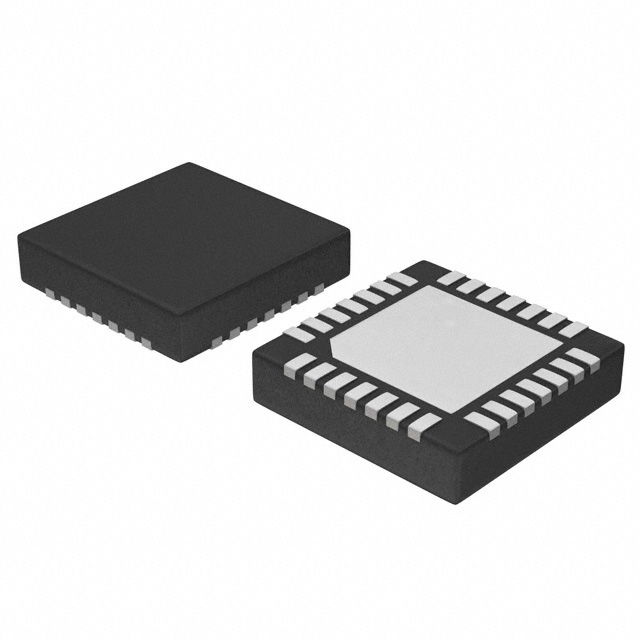

DSPIC33FJ64MC202-I/MM
ActiveDIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 21 I/O'S, I2C, SPI, UART, 2.75 V
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64MC202-I/MM
ActiveDIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 21 I/O'S, I2C, SPI, UART, 2.75 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64MC202-I/MM |
|---|---|
| Connectivity | LINbus, I2C, IrDA, SPI, UART/USART |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | 6 channels |
| Data Converters [custom] | 12 b, 10 b |
| Mounting Type | Surface Mount |
| Number of I/O | 21 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 28-VQFN Exposed Pad |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 8 K |
| Speed | 40 MIPs |
| Supplier Device Package | 28-QFN-S (6x6) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.28 | |
| 25 | $ 5.76 | |||
| 100 | $ 5.23 | |||
| Microchip Direct | TUBE | 1 | $ 6.28 | |
| 25 | $ 5.76 | |||
| 100 | $ 5.23 | |||
| 1000 | $ 4.80 | |||
| 5000 | $ 4.56 | |||
| Newark | Each | 100 | $ 5.39 | |
Description
General part information
dsPIC33FJ64MC202 Series
The dsPIC33F 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the PIC24HJ family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F,
dsPIC30F and dsPIC33F devices.
