ED205/2DS

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 10MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 10MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED205/2DS

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.394 in
Pitch [x]	10 mm
Positions Per Level	2
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Contact Material - Plating [custom]	Screw Thread	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Mating Orientation	Color	Torque - Screw	Torque - Screw	Mounting Type	Pitch [x]	Pitch [x]	Housing Material	Current	Voltage	Positions Per Level	Clamp Material - Plating	Features	Wire Termination
On Shore Technology Inc. ED205/3DS	Brass	M3	14 AWG	22 AWG	-30 ░C	105 ░C	1	Vertical with Board	Blue	4.4 Lb-In	0.5 Nm	Through Hole	0.394 in	10 mm	Polyamide (PA) Nylon	15 A	300 V	3	Stainless Steel	Interlocking (Side)	Screw - Leaf Spring Wire Guard
On Shore Technology Inc. ED205/2DS	Brass	M3	14 AWG	22 AWG	-30 ░C	105 ░C	1	Vertical with Board	Blue	4.4 Lb-In	0.5 Nm	Through Hole	0.394 in	10 mm	Polyamide (PA) Nylon	15 A	300 V	2	Stainless Steel	Interlocking (Side)	Screw - Leaf Spring Wire Guard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.75

General part information

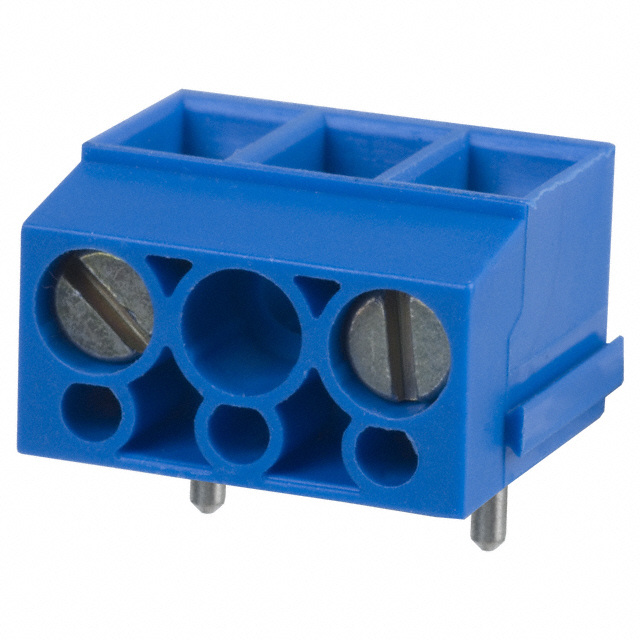

2 Position Wire to Board Terminal Block Vertical with Board 0.394" (10.00mm) Through Hole
