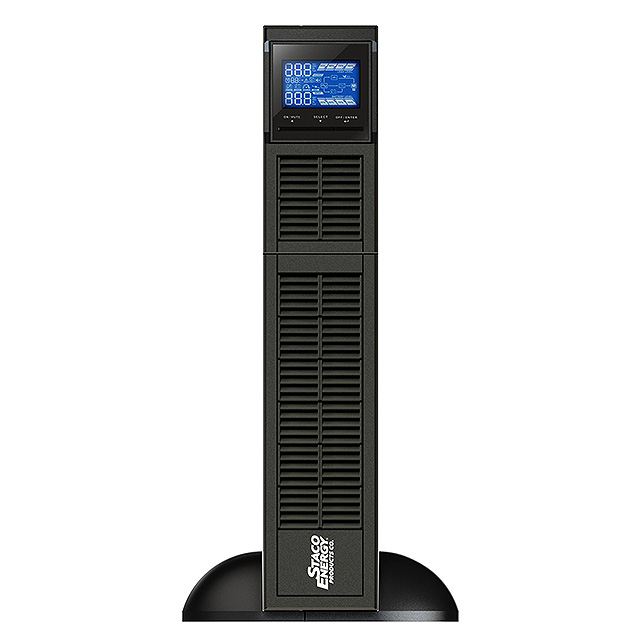

SV3000RT120

Active

Staco Energy Products Company

SINGLE PHASE UPS, 3000VA/2740W, 120V

Search across all available documentation for this part.

Active

Staco Energy Products Company

SINGLE PHASE UPS, 3000VA/2740W, 120V

Technical Specifications

Parameters and characteristics for this part

Specification	SV3000RT120

AC Outlets	5
Applications	Industrial Control, General Purpose
Backup Time - Max Load	2.7 minutes
Form	Rackmount, Tower
Height [z]	86.2 mm
Height [z]	3.394 in
Input Connector	NEMA L5-30P
Output Connector	NEMA 5-20R (4), NEMA L5-30R
Power - Rated	3 kVA
Power - Rated	2700 W
Size / Dimension [x]	704.6 mm
Size / Dimension [x]	27.74 "
Size / Dimension [y]	438 mm
Size / Dimension [y]	17.244 in
Type	Online (Double Conversion)
Voltage - Output	120 V, 230 V

Part	Voltage - Output	Form	Power - Rated	Power - Rated	AC Outlets	Applications	Output Connector	Input Connector	Backup Time - Max Load	Type	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Staco Energy Products Company SV3000RT120	120 V 230 V	Rackmount Tower	3 kVA	2700 W	5	General Purpose Industrial Control	NEMA 5-20R (4) NEMA L5-30R	NEMA L5-30P	2.7 minutes	Online (Double Conversion)	86.2 mm	3.394 in	438 mm	704.6 mm	17.244 in	27.74 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SINGLE PHASE UPS, 3000VA/2740W, 120V

Technical documentation and resources

No documents available
