RDS-10S-1055-D

Active

CUI Devices

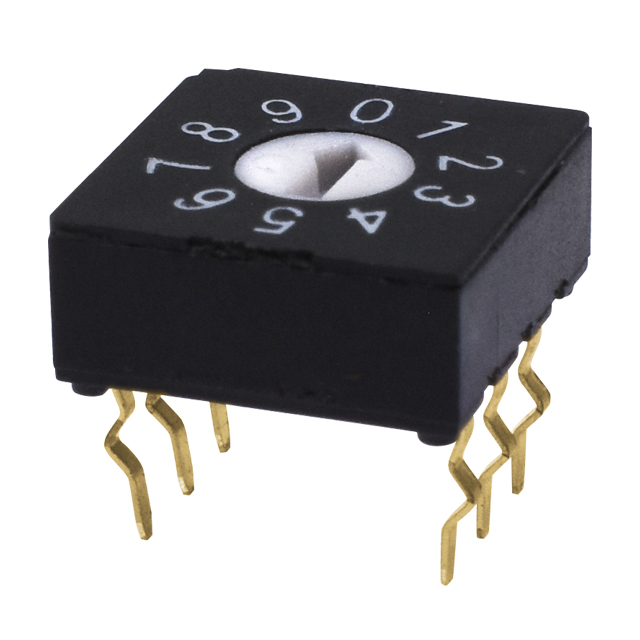

ENCODING SWITCH; DEC/BCD; POS: 10; THT; RCONT MAX: 50MΩ; PA9T

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDS-10S-1055-D

Active

CUI Devices

ENCODING SWITCH; DEC/BCD; POS: 10; THT; RCONT MAX: 50MΩ; PA9T

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDS-10S-1055-D

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA9T)
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	10000 Cycles
Height Above Board	5.5 mm
Height Above Board	0.217 in
Length	10 mm
Length	0.394 in
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

RDS-10S Series

Part	Body Material	Actuator Type	Voltage Rating	Number of Positions	Contact Finish	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Termination Style	Actuator Level	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Circuit	Features	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board	Length	Length
CUI Devices RDS-10S-7229-R-D	Liquid Crystal Polymer (LCP)	Rotary with Shaft	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Through Hole	Copper Alloy	PC Pin	Raised	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof	5.9 mm	0.232 in
CUI Devices RDS-10S-7229-S-SMT-TR	Liquid Crystal Polymer (LCP)	Rotary with Shaft	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	Gull Wing	Raised	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			6 mm	0.236 in
CUI Devices RDS-10S-7229-A-SMT-TR	Liquid Crystal Polymer (LCP)	Rotary for Tool	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	Gull Wing	Flush Recessed	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			3 mm	0.118 in
CUI Devices RDS-10S-7229-A-SMT	Liquid Crystal Polymer (LCP)	Rotary for Tool	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	Gull Wing	Flush Recessed	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			3 mm	0.118 in
CUI Devices RDS-10S-74385-SMT	Liquid Crystal Polymer (LCP)	Rotary for Tool	42 VDC	10	Gold	7.4 mm	0.291 in	125 °C	-60 °C	Surface Mount	Copper Alloy	Gull Wing	Flush Recessed	25000 Steps	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			3.85 mm	0.152 in
CUI Devices RDS-10S-1055-D	Polyamide (PA9T)	Rotary for Tool	24 VDC	10	Gold			85 °C	-40 °C	Through Hole	Copper Alloy	PC Pin	Flush Recessed	10000 Cycles	0.1 in	Full	2.54 mm	25 mA	BCD				5.5 mm	0.217 in	10 mm	0.394 in
CUI Devices RDS-10S-7229-R-JSMT-TR	Liquid Crystal Polymer (LCP)	Rotary with Shaft	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	J Lead	Raised	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			6 mm	0.236 in
CUI Devices RDS-10S-7229-C-JSMT-TR	Liquid Crystal Polymer (LCP)	Rotary for Tool	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	J Lead	Flush Recessed	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			3 mm	0.118 in
CUI Devices RDS-10S-74365-45A-D	Liquid Crystal Polymer (LCP)	Rotary with Shaft	42 VDC	10	Gold	7.4 mm	0.291 in	125 °C	-60 °C	Through Hole	Copper Alloy	PC Pin	Raised	25000 Steps	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof
CUI Devices RDS-10S-7229-R-JSMT	Liquid Crystal Polymer (LCP)	Rotary with Shaft	50 V	10	Gold	7.2 mm	0.283 "	85 °C	-40 °C	Surface Mount	Copper Alloy	J Lead	Raised	10000 Cycles	0.1 in	Full	2.54 mm	100 mA	BCD	IP67 - Dust Tight Waterproof			6 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.61
		10	$ 2.12
		25	$ 1.95
		100	$ 1.71
		250	$ 1.57
		500	$ 1.47
		1000	$ 1.37
		2500	$ 1.25
		5000	$ 1.17

Description

General part information

RDS-10S Series

Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 25mA 24VDC
