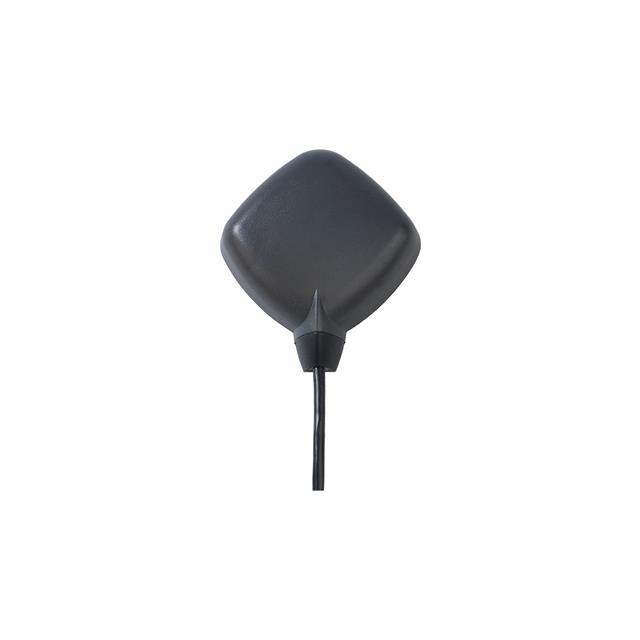

8117D
ActiveAmphenol PCTEL
RF ANT 1.593GHZ MOD SMA MALE MAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8117D
ActiveAmphenol PCTEL
RF ANT 1.593GHZ MOD SMA MALE MAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8117D |
|---|---|
| Antenna Type | Module |
| Applications | GPS, GLONASS |
| Features | LNA, Filter, Cable - 3m |
| Frequency (Center/Band) | 1.593 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.618 GHz |
| Frequency Range [Min] | 1.568 GHz |
| Gain [Max] | 3 dBic |
| Gain [Min] | -2 dBic |
| Height (Max) | 13.6 mm |
| Height (Max) [Max] | 0.535 in |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 64.85 | |
| 10 | $ 50.84 | |||
| 25 | $ 47.26 | |||
| 100 | $ 44.51 | |||
Description
General part information
8117D Series
RF ANTENNA GLONASS, GPS Module SMA Male Magnetic
