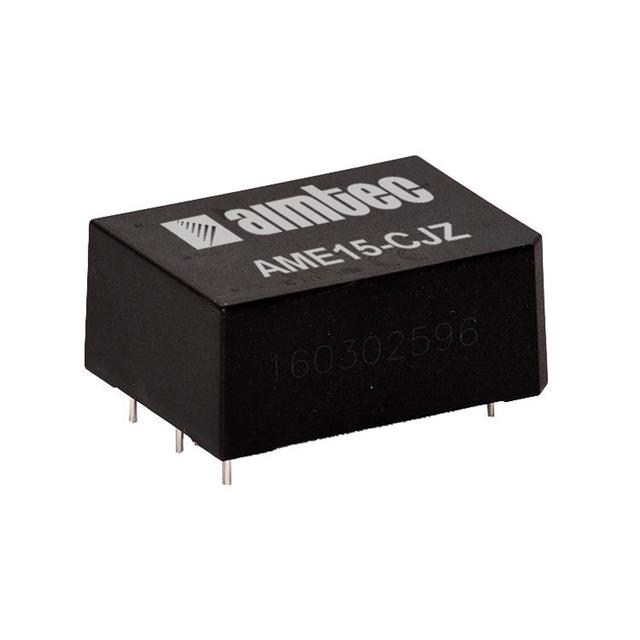

AME15-24DCJZ

Active

aimtec

AC/DC CONVERTER +/-24V 15W

Search across all available documentation for this part.

Active

aimtec

AC/DC CONVERTER +/-24V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Line Regulation	Mounting Type	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Output 1	Applications	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Current - Output (Max)
aimtec AME15-15SVZ	8-DIP Module	4 Lead	Enclosed	1	85 °C	-40 °C	80 %	1 A	15 W	0.5 %	Through Hole	Universal Input	45 mm	2.44 in	1.77 "	22.5 mm	62 mm	0.88 in	CE cURus	15 V	ITE (Commercial)	1 %
aimtec AME15-5SMAZ	6-DIP Module 4 Leads		Enclosed	1	85 °C	-40 °C	77 %	3 A	15 W	1 %	Through Hole	Universal Input	46.5 mm	2.56 in	1.83 in	20.1 mm	65 mm	0.79 in	CB CE cULus cURus	5 V	ITE (Commercial) Medical	1 %	90 VAC	264 VAC	0.22 lb	100 g
aimtec AME15-12SMAZ	6-DIP Module 4 Leads		Enclosed	1	85 °C	-40 °C	79 %	1.25 A	15 W	1 %	Through Hole	Universal Input	46.5 mm	2.56 in	1.83 in	21 mm	65 mm	0.83 in	CB CE cURus	12 V	ITE (Commercial) Medical	1 %	90 VAC 130 VDC	264 VAC 370 VDC
aimtec AME15-24DCJZ	7-DIP Module 5 Leads		Enclosed	2	70 °C	-25 °C	83 %		15 W	1.5 %	Through Hole	Universal Input	45 mm	2.44 in	1.77 "	22.5 mm	62 mm	0.89 in	CE cURus	24 V	ITE (Commercial)	1.5 %			0.187 lb	85 g	310 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 2 Output 24V 310mA, 310mA 85 ~ 264 VAC Input
