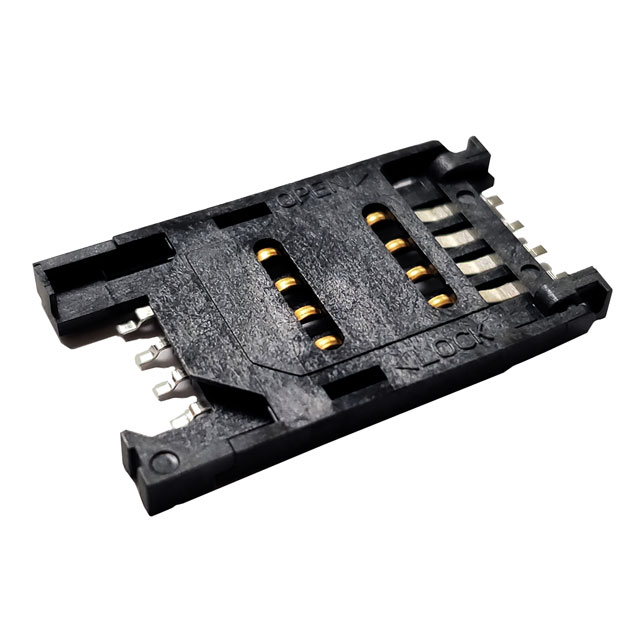

SCC-A3-08-SG-HC-T/R
ActiveAdam Tech
SIM CARD 8POS CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
SCC-A3-08-SG-HC-T/R
ActiveAdam Tech
SIM CARD 8POS CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCC-A3-08-SG-HC-T/R |
|---|---|
| Card Type | SIM Card |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board | 0.098 in |
| Height Above Board | 2.5 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 1.86 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| Tape & Reel (TR) | 800 | $ 0.87 | ||
| 1600 | $ 0.81 | |||
| 2400 | $ 0.78 | |||
| 4000 | $ 0.74 | |||
| 5600 | $ 0.72 | |||
| 8000 | $ 0.70 | |||
Description
General part information
SCC-A3 Series
8 Position Card Connector SIM Card Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
