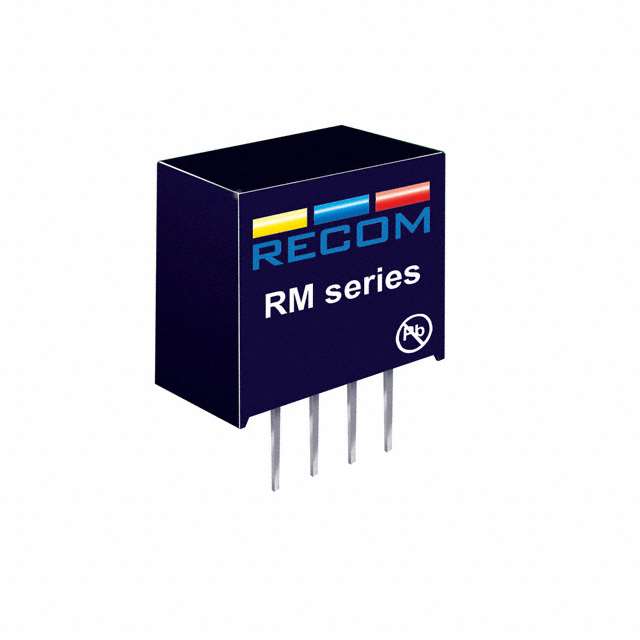

RM-1515S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.25W DC/DC 1KV UNREG 15VIN 15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RM-1515S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.25W DC/DC 1KV UNREG 15VIN 15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM-1515S

Applications	ITE (Commercial)
Current - Output (Max) [Max]	17 mA
Efficiency	76 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Power (Watts)	250 mW
Size / Dimension [x]	11.5 mm
Size / Dimension [x]	0.45 in
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	13.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V

RM-3.33.3 Series

Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 24Vin 3.3Vout

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Features	Mounting Type	Package / Case	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Applications	Current - Output (Max) [Max]	Number of Outputs
RECOM Power RM-1515S	Isolated Module	85 °C	-40 °C	16.5 V	15 V	13.5 V	76 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	17 mA	1
RECOM Power RM-1515S/H	Isolated Module	85 °C	-40 °C	16.5 V	15 V	13.5 V	76 %	SCP	Through Hole	4-SIP Module	2000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial) Medical	17 mA	1
RECOM Power RM-123.3S	Isolated Module	85 °C	-40 °C	13.2 V	3.3 V	10.8 V	70 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	76 mA	1
RECOM Power RM-0512S/HP	Isolated Module	85 °C	-40 °C	5.5 V	12 V	4.5 V	72 %	SCP	Through Hole	4-SIP Module	2000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial) Medical	21 mA	1
RECOM Power RM-1205S/HP	Isolated Module	85 °C	-40 °C	13.2 V	5 V	10.8 V	72 %	SCP	Through Hole	4-SIP Module	2000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial) Medical	50 mA	1
RECOM Power RM-053.3S/H	Isolated Module	85 °C	-40 °C	5.5 V	3.3 V	4.5 V	70 %	SCP	Through Hole	4-SIP Module	2000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial) Medical	76 mA	1
RECOM Power RM-0515S/P	Isolated Module	85 °C	-40 °C	5.5 V	15 V	4.5 V	76 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	17 mA	1
RECOM Power RM-053.3S	Isolated Module	85 °C	-40 °C	5.5 V	3.3 V	4.5 V	70 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	76 mA	1
RECOM Power RM-243.3S	Isolated Module	85 °C	-40 °C	26.4 V	3.3 V	21.6 V	70 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	76 mA	1
RECOM Power RM-0505S/P	Isolated Module	85 °C	-40 °C	5.5 V	5 V	4.5 V	72 %	SCP	Through Hole	4-SIP Module	1000 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	250 mW	ITE (Commercial)	50 mA	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	42	$ 6.43
Sager	N/A	1	$ 6.62
		5	$ 6.41
		10	$ 6.12
		25	$ 5.93
		50	$ 5.85
		100	$ 5.68
		250	$ 5.30

Description

General part information

RM-3.33.3 Series

Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 24Vin 3.3Vout
