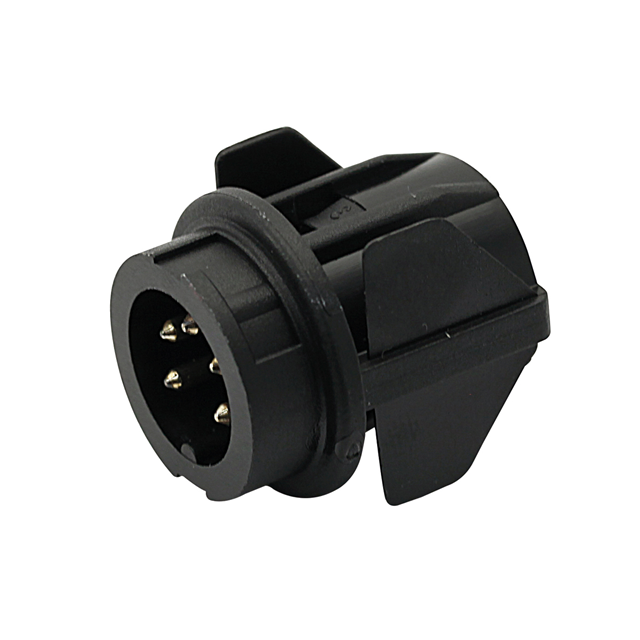

T 3376 518

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Technical Specifications

Parameters and characteristics for this part

Specification	T 3376 518

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M16-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Ingress Protection	Applications	Termination	Connector Type	Voltage Rating	Insert Material	Shielding	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Primary Material	Current Rating (Amps)	Mounting Type	Color	Shell Material	Material Flammability Rating	Contact Finish - Mating
Amphenol Sine Systems Corp T 3376 518	Bayonet Lock	IP40	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Solder	Male Pins Receptacle	250 VDC	Thermoplastic	Unshielded	M16-5	100 °C	-40 °C	Keyed	Plastic	7 A	Panel Mount Snap-In	Black	Plastic	UL94 V-0	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
