3010-40-041-11-00

Active

CnC Tech, LLC

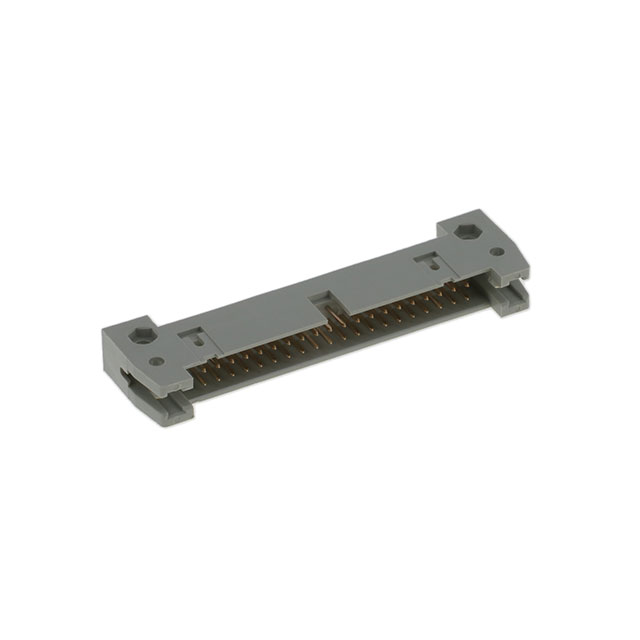

CONN HEADER 40POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3010-40-041-11-00

Active

CnC Tech, LLC

CONN HEADER 40POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-40-041-11-00

Cable Termination	IDC
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

3010-40 Series

Part	Shrouding	Style	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Shape	Contact Type	Features	Termination	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing [x]	Row Spacing	Contact Finish	Contact Finish Thickness	Cable Termination	Pitch [x]	Pitch [x]
CnC Tech, LLC 3010-40-001-13-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-001-12-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-003-13-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Surface Mount	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2			Header	Nylon 9T Polyamide (PA9T)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-002-12-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole Right Angle	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	UL94 V-0	All			250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm	0.327 "	8.3 mm
CnC Tech, LLC 3010-40-041-11-00					Free Hanging (In-Line)	Push-Pull									Male Pin	Polarizing Key		2			Header					40						0.1 in	2.54 mm	Gold	Flash	IDC	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.50
		10	$ 2.27
		80	$ 2.00
		440	$ 1.76

Description

General part information

3010-40 Series

40 Position Rectangular Header Connector IDC Gold

Documents

Technical documentation and resources
