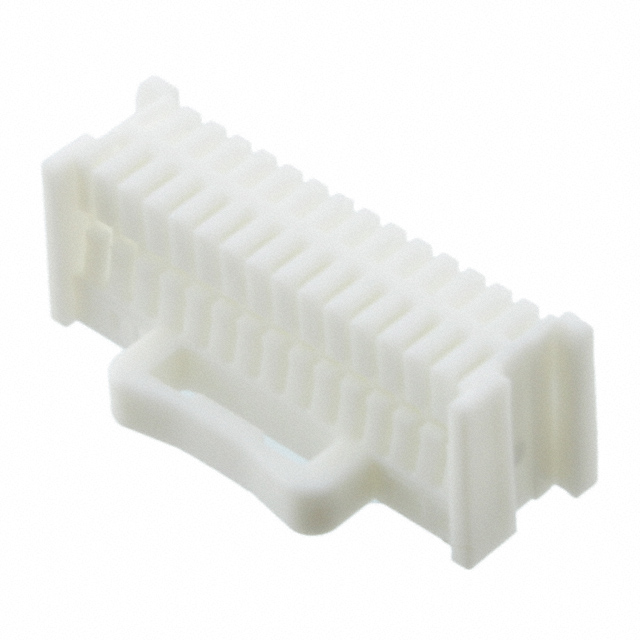

DF50S-30DS-1C
ActiveHirose Electric USA, Inc.
CONN SOCKET HSG 30POS 1.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DF50S-30DS-1C
ActiveHirose Electric USA, Inc.
CONN SOCKET HSG 30POS 1.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF50S-30DS-1C |
|---|---|
| Color | White |
| Connector Type | Socket |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.19 | |||
Description
General part information
DF50S Series
30 Rectangular Connectors - Housings Socket White 0.039" (1.00mm)
Documents
Technical documentation and resources
