0905841326

Active

Molex

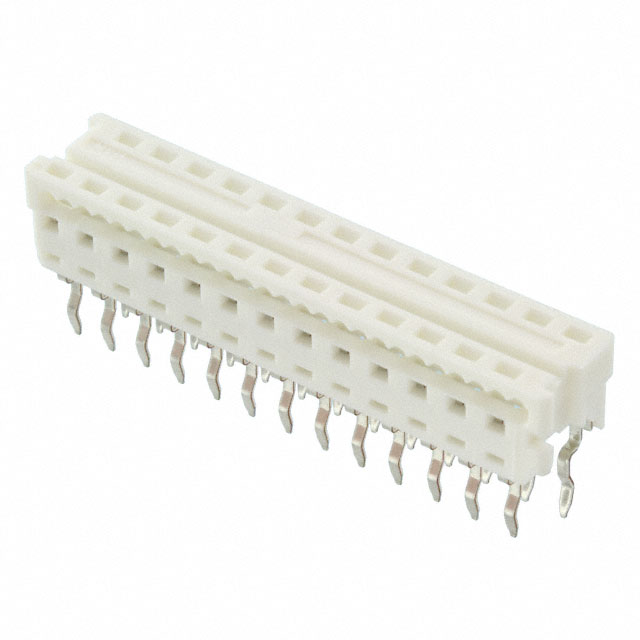

CONN DIP HDR IDC 26POS PCB

Search across all available documentation for this part.

Active

Molex

CONN DIP HDR IDC 26POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Board-Side Pitch	Board-Side Pitch	Wire Gauge	Wire Gauge [Max]	Wire Gauge [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows	Mounting Type	Row Spacing [x]	Row Spacing	Cable Pitch	Cable Pitch	Number of Positions Loaded	Features	Contact Finish	Number of Positions
Molex 0905841320	DIP Header Ribbon Cable	20	0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin
Molex 0905841326	DIP Header Ribbon Cable	26	0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin
Molex 0905841314	DIP Header Ribbon Cable	14	0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin
Molex 0905841316	DIP Header Ribbon Cable		0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin	16
Molex 0905841310	DIP Header Ribbon Cable	10	0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin
Molex 0905841304	DIP Header Ribbon Cable	4	0.1 in	2.54 mm	Stranded	28 AWG	26 AWG	White	80 Áin	2.03 Ám	IDC	2	Through Hole Press-Fit	0.1 in	2.54 mm	1.27 mm	0.05 in	All	Closed End	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	53	$ 1.75

General part information

26 Position Ribbon Cable, DIP Header Connector White IDC 26-28 AWG, Stranded Through Hole, Press-Fit
